5.5. Tools and classes¶
Contents
5.5.1. Classes¶
This module provides the Base class for PSDs

class
Spectrum
(data, data_y=None, sampling=1.0, detrend=None, scale_by_freq=True, NFFT=None)[source]¶ Base class for all Spectrum classes
All PSD classes should inherits from this class to store common attributes such as the input data or sampling frequency. An instance is created as follows:
>>> p = Spectrum(data, sampling=1024) >>> p.data >>> p.sampling
The input parameters are:
Parameters:  data (array) – input data (list or numpy.array)
 data_y (array) – input data required to perform crossPSD only.
 sampling (float) – sampling frequency of the input
data
 detrend (str) – detrend method ([None,’mean’]) to apply on the input data before
computing the PSD. See
detrend
.  scale_by_freq (bool) – divide the final PSD by
 NFFT (int) – total length of the final data sets (padded with zero if needed; default is 4096)
The input parameters are available as attributes. Additional attributes such as
N
(the data length),df
(the frequency step are set (see constructor documentation for a complete list).Warning
Spectrum
does not compute the PSD estimate.You can populate manually the
psd
attribute but you should respect the following convention: if the input data is real, the PSD is assumed to be onesided (odd length)
 if the input data is complex, the PSD is assumed to be twosided (even length).
When
psd
is set,sides
is reset to its default value,NFFT
anddf
are updated.Spectrum instances have plotting utilities like
plot()
that take care of plotting the PSD versus the appropriate frequency range (based onsampling
,NFFT
andsides
)Note
the modification of some attributes (e.g., NFFT), makes the PSD obsolete. In such cases, the PSD must be recomputed before using
plot()
again.At any time, you can get general information about the Spectrum instance:
>>> p = Spectrum(marple_data) >>> print(p) Spectrum summary Data length is 64 PSD not yet computed Sampling 1.0 freq resolution 0.015625 datatype is complex sides is twosided scal_by_freq is True
Constructor
Attributes:
From the input parameters, the following attributes are set:
The following readonly attributes are set during the initialisation:
And finally, additional readwrite attributes are available:

NFFT
¶ Getter/Setter to the NFFT attribute.
Parameters: NFFT – a user choice for setting
NFFT
. if None, the NFFT is set to
N
, the data length.  if ‘nextpow2’, computes the next power of 2 greater than or equal to the data length.
 if a integer is provided, it must be positive
 if None, the NFFT is set to

data
¶ Getter/Setter for the input data. If input is a list, it is cast into a numpy.array. Then,
N
,df
anddatatype
are updated.

data_y
¶ Getter/Setter to the Ydata

datatype
¶ Getter to the datatype (‘real’ or ‘complex’).
datatype
is automatically updated when changing the data.

detrend
¶ Getter/Setter to detrend:
 None: do not perform any detrend.
 ‘mean’: remove the mean value of each segment from each segment of the data.
 ‘longmean’: remove the mean value from the data before splitting it into segments.
 ‘linear’: remove linear trend from each segment.

get_converted_psd
(sides)[source]¶ This function returns the PSD in the sides format
Parameters: sides (str) – the PSD format in [‘onesided’, ‘twosided’, ‘centerdc’] Returns: the expected PSD. from spectrum import * p = pcovar(marple_data, 15) centerdc_psd = p.get_converted_psd('centerdc')

method
¶ def __call__(self, *args, **kargs): # To be use with care. THis function is there just to help, it # does not populate the proper attribute except psd. if self.method is not None:
#return res

plot
(filename=None, norm=False, ylim=None, sides=None, **kargs)[source]¶ a simple plotting routine to plot the PSD versus frequency.

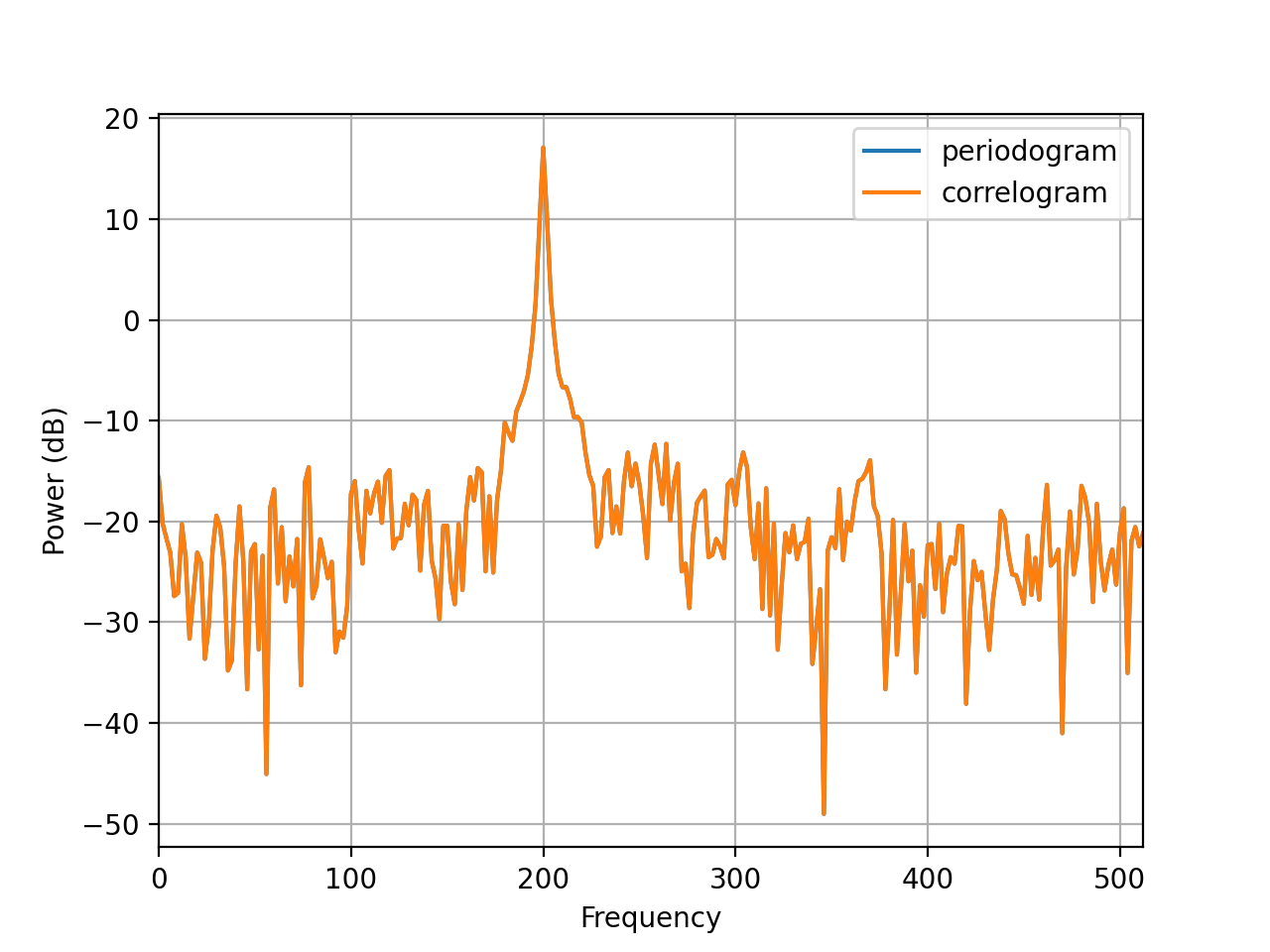

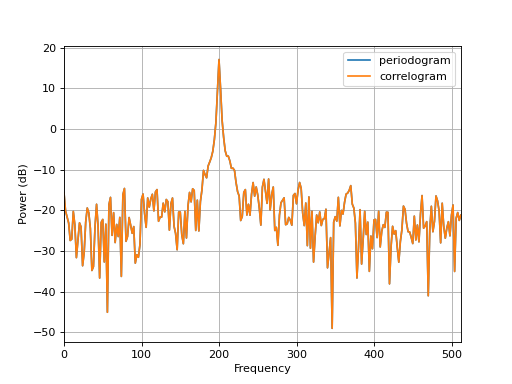

Parameters: from spectrum import * p = Periodogram(marple_data) p.plot(norm=True, marker='o')
(Source code, png, hires.png, pdf)

power
()[source]¶ Return the power contained in the PSD
if scale_by_freq is False, the power is:
else, it is
Todo
check these equations

psd
¶ Getter/Setter to
psd
Parameters: psd (array) – the array must be in agreement with the onesided/twosided convention: if the data in real, the psd must be onesided. If the data is complex, the psd must be twosided. When you set this attribute, several attributes are set:

scale_by_freq
¶ scale the PSD by

class
FourierSpectrum
(data, sampling=1.0, window='hanning', NFFT=None, detrend=None, scale_by_freq=True, lag=1)[source]¶ Spectrum based on Fourier transform.
This class inherits attributes and methods from
Spectrum
. It is used by children classPeriodogram
,pcorrelogram
andWelch
PSD estimates.The parameters are those used by
Spectrum
Parameters:  data (array) – Input data (list or numpy.array)
 data_y – input data required to perform crossPSD only.
 sampling (float) – sampling frequency of the input
data
 detrend (str) – detrend method ([None,’mean’]) to apply on the input
data before computing the PSD. See
detrend
.  scale_by_freq (bool) – Divide the final PSD by
 NFFT (int) – total length of the data given to the FFT
In addition you need specific parameters such as:
Parameters:  window (str) – a tapering window. See
Window
.  lag (int) – to be used by the
pcorrelogram
methods only.
This class has dedicated PSDs methods such as
speriodogram()
, which are equivalent to children class such asPeriodogram

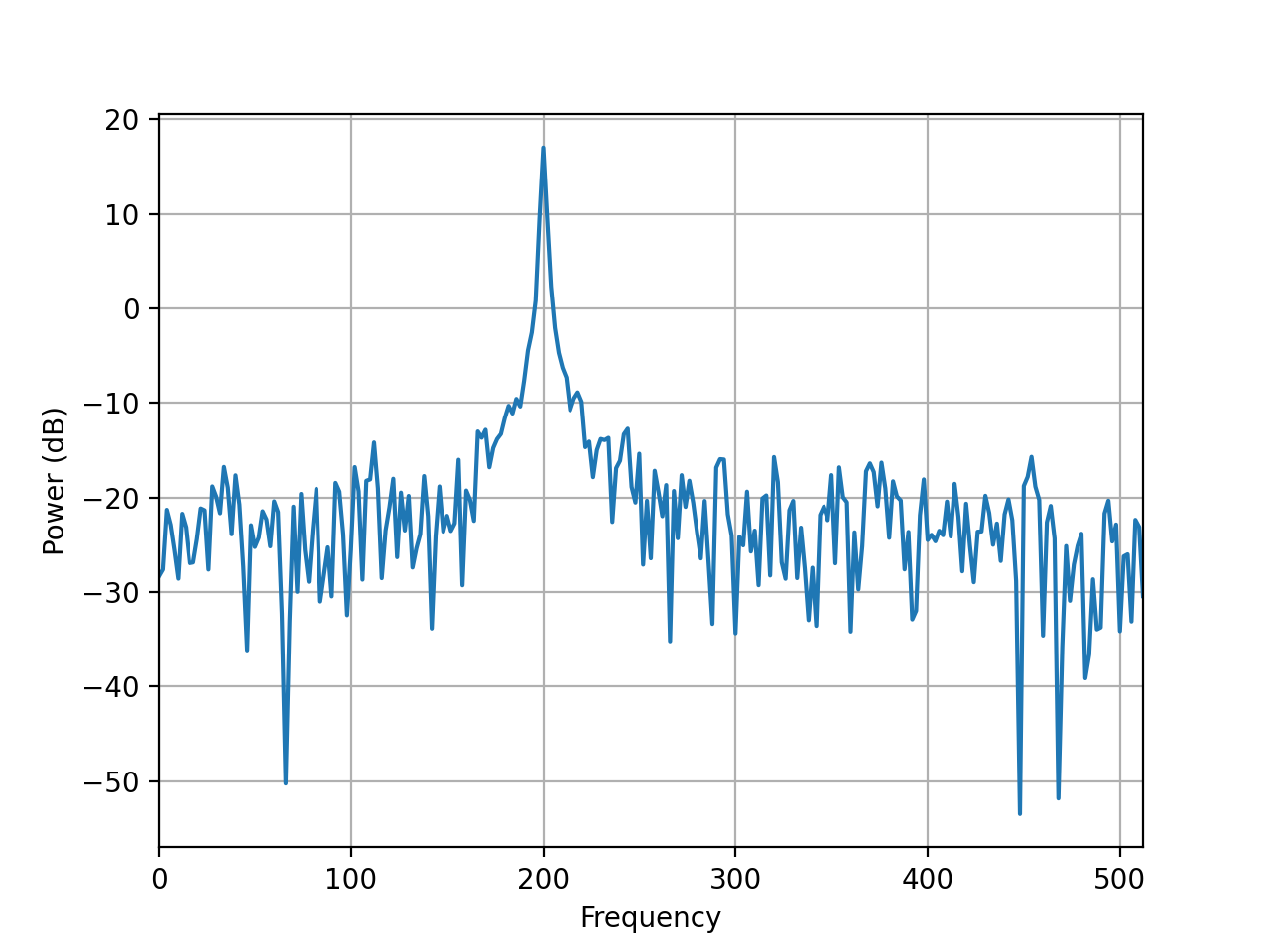

.from spectrum import datasets from spectrum import FourierSpectrum s = FourierSpectrum(datasets.data_cosine(), lag=32, sampling=1024, NFFT=512) s.periodogram() s.plot(label='periodogram') #s.correlogram() s.plot(label='correlogram') from pylab import legend, xlim legend() xlim(0,512)
(Source code, png, hires.png, pdf)
Constructor
See the class documentation for the parameters.
Additional attributes to those inherited from
Spectrum
are:
lag
¶ Getter/Setter used by the correlogram when autocorrelation estimates are required.

periodogram
()[source]¶ An alias to
Periodogram
The parameters are extracted from the attributes. Relevant attributes ares
window
, attr:sampling, attr:NFFT, attr:scale_by_freq,detrend
.from spectrum import datasets from spectrum import FourierSpectrum s = FourierSpectrum(datasets.data_cosine(), sampling=1024, NFFT=512) s.periodogram() s.plot()
(Source code, png, hires.png, pdf)

window
¶ Tapering window to be applied

class
ParametricSpectrum
(data, sampling=1.0, ar_order=None, ma_order=None, lag=1, NFFT=None, detrend=None, scale_by_freq=True)[source]¶ Spectrum based on Fourier transform.
This class inherits attributes and methods from
Spectrum
. It is used by children classPeriodogram
,pcorrelogram
andWelch
PSD estimates. The parameters are those used bySpectrum
.Parameters: In addition you need specific parameters such as:
Parameters:  window (str) – a tapering window. See
Window
.  lag (int) – to be used by the
pcorrelogram
methods only.  NFFT (int) – Total length of the data given to the FFT
This class has dedicated PSDs methods such as
periodogram()
, which are equivalent to children class such asPeriodogram

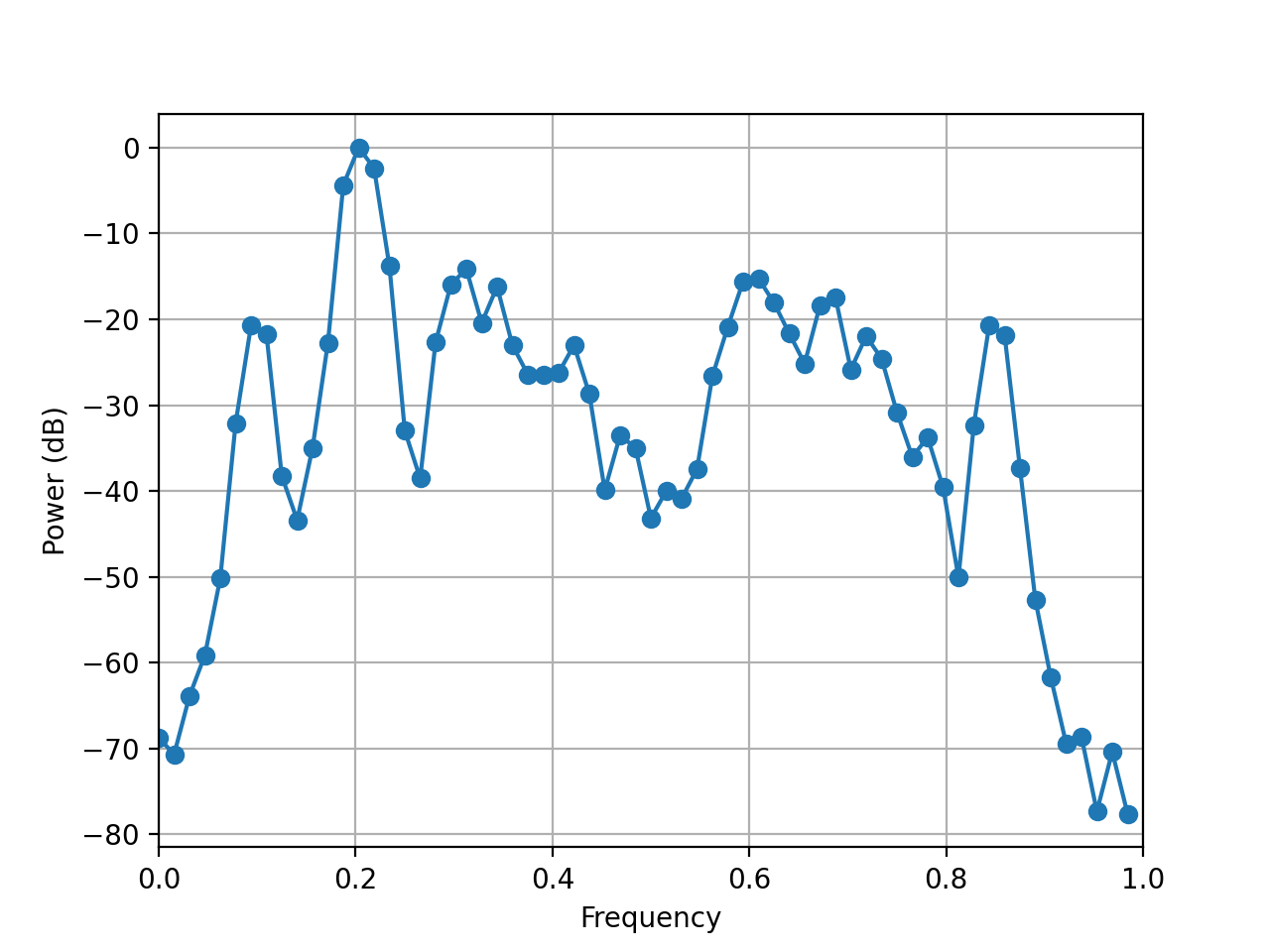

.from spectrum import datasets from spectrum import ParametricSpectrum data = datasets.data_cosine(N=1024) s = ParametricSpectrum(data, ar_order=4, ma_order=4, sampling=1024, NFFT=512, lag=10) #s.parma() #s.plot(sides='onesided') #s.plot(sides='twosided')
Constructor
See the class documentation for the parameters.
Additional attributes to those inherited from
Spectrum
:
ar
¶

ar_order
¶

ma
¶

ma_order
¶

reflection
¶ self.reflection = None elif method == ‘aryule’:
from spectrum import aryule ar, v, coeff = aryule(self.data, self.ar_order) self.ar = ar self.rho = v self.reflection = coeff

rho
¶
 window (str) – a tapering window. See

class
Range
(N, sampling=1.0)[source]¶ A class to ease the creation of frequency ranges.
Given the length
N
of a data sample and a sampling frequencysampling
, this class provides methods to generate frequency rangescenterdc()
: frequency range from sampling/2 up to sampling/2 (excluded),twosided()
: frequency range from 0 up to sampling (excluded),onesided()
: frequency range from 0 up to sampling (included or excluded depending on evenness of the data). If NFFT is even, PSD has length NFFT/2 + 1 over the interval [0,pi]. If NFFT is odd, the length of PSD is (NFFT+1)/2 and the interval is [0, pi)
Each method has a generator version:
>>> r = Range(10, sampling=1) >>> list(r.onesided_gen()) [0.0, 0.1, 0.2, 0.3, 0.4, 0.5] >>> r.onesided() [0.0, 0.1, 0.2, 0.3, 0.4, 0.5]
The frequency range length is for the onesided case if is odd), and for the twosided and centerdc cases:
>>> r.twosided() [0.0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9] >>> len(r.twosided()) 10 >>> len(r.centerdc()) 10 >>> len(r.onesided()) 5
Constructor
Parameters: Attributes:
From the input parameters, read/write attributes are set:
Additionally, the following readonly attribute is available:

centerdc
()[source]¶ Return the twosided frequency range as a list (see
centerdc_gen()
for details).

centerdc_gen
()[source]¶ Return the centered frequency range as a generator.
>>> print(list(Range(8).centerdc_gen())) [0.5, 0.375, 0.25, 0.125, 0.0, 0.125, 0.25, 0.375]

onesided
()[source]¶ Return the onesided frequency range as a list (see
onesided_gen()
for details).

onesided_gen
()[source]¶ Return the onesided frequency range as a generator.
If
N
is even, the length is N/2 + 1. IfN
is odd, the length is (N+1)/2.>>> print(list(Range(8).onesided())) [0.0, 0.125, 0.25, 0.375, 0.5] >>> print(list(Range(9).onesided())) [0.0, 0.1111, 0.2222, 0.3333, 0.4444]

twosided
()[source]¶ Return the twosided frequency range as a list (see
twosided_gen()
for details).
5.5.2. Correlation¶
Correlation module
Provides two correlation functions. CORRELATION()
is slower than
xcorr()
. However, the output is as expected by some other functions.
Ultimately, it should be replaced by xcorr()
.
For real data, the behaviour of the 2 functions is identical. However, for complex data, xcorr returns a 2sides correlation.
CORRELATION (x[, y, maxlags, norm])
Correlation function
xcorr (x[, y, maxlags, norm])
Crosscorrelation using numpy.correlate

CORRELATION
(x, y=None, maxlags=None, norm='unbiased')[source]¶ Correlation function
This function should give the same results as
xcorr()
but it returns the positive lags only. Moreover the algorithm does not use FFT as compared to other algorithms.Parameters:  x (array) – first data array of length N
 y (array) – second data array of length N. If not specified, computes the autocorrelation.
 maxlags (int) – compute cross correlation between [0:maxlags] when maxlags is not specified, the range of lags is [0:maxlags].
 norm (str) –
normalisation in [‘biased’, ‘unbiased’, None, ‘coeff’]
 biased correlation=raw/N,
 unbiased correlation=raw/(Nlag)
 coeff correlation=raw/(rms(x).rms(y))/N
 None correlation=raw
Returns:  a numpy.array correlation sequence, r[1,N]
 a float for the zerolag correlation, r[0]
The unbiased correlation has the form:
The biased correlation differs by the front factor only:
with .
>>> from spectrum import CORRELATION >>> x = [1,2,3,4,5] >>> res = CORRELATION(x,x, maxlags=0, norm='biased') >>> res[0] 11.0
Note
this function should be replaced by
xcorr()
.See also

xcorr
(x, y=None, maxlags=None, norm='biased')[source]¶ Crosscorrelation using numpy.correlate
Estimates the crosscorrelation (and autocorrelation) sequence of a random process of length N. By default, there is no normalisation and the output sequence of the crosscorrelation has a length 2*N+1.
Parameters:  x (array) – first data array of length N
 y (array) – second data array of length N. If not specified, computes the autocorrelation.
 maxlags (int) – compute cross correlation between [maxlags:maxlags] when maxlags is not specified, the range of lags is [N+1:N1].
 option (str) – normalisation in [‘biased’, ‘unbiased’, None, ‘coeff’]
The true crosscorrelation sequence is
However, in practice, only a finite segment of one realization of the infinitelength random process is available.
The correlation is estimated using numpy.correlate(x,y,’full’). Normalisation is handled by this function using the following cases:
 ‘biased’: Biased estimate of the crosscorrelation function
 ‘unbiased’: Unbiased estimate of the crosscorrelation function
 ‘coeff’: Normalizes the sequence so the autocorrelations at zero
 lag is 1.0.
Returns:  a numpy.array containing the crosscorrelation sequence (length 2*N1)
 lags vector
Note
If x and y are not the same length, the shorter vector is zeropadded to the length of the longer vector.
Examples
>>> from spectrum import xcorr >>> x = [1,2,3,4,5] >>> c, l = xcorr(x,x, maxlags=0, norm='biased') >>> c array([ 11.])
See also
5.5.3. Tools¶
Tools module
db2mag (xdb)
Convert decibels (dB) to magnitude
db2pow (xdb)
Convert decibels (dB) to power
mag2db (x)
Convert magnitude to decibels (dB)
nextpow2 (x)
returns the smallest power of two that is greater than or equal to the absolute value of x.
pow2db (x)
returns the corresponding decibel (dB) value for a power value x.
onesided_2_twosided (data)
Convert a twosided PSD to a onesided PSD
twosided_2_onesided (data)
Convert a onesided PSD to a twosided PSD
centerdc_2_twosided (data)
Convert a centerdc PSD to a twosided PSD
twosided_2_centerdc (data)
Convert a twosided PSD to a centerdc PSD
Code author: Thomas Cokelaer, 2011

cshift
(data, offset)[source]¶ Circular shift to the right (within an array) by a given offset
Parameters:  data (array) – input data (list or numpy.array)
 offset (int) – shift the array with the offset
>>> from spectrum import cshift >>> cshift([0, 1, 2, 3, 2, 1], 2) array([2, 1, 0, 1, 2, 3])

db2mag
(xdb)[source]¶ Convert decibels (dB) to magnitude
>>> from spectrum import db2mag >>> db2mag(20) 0.1
See also

db2pow
(xdb)[source]¶ Convert decibels (dB) to power
>>> from spectrum import db2pow >>> p = db2pow(10) >>> p 0.1
See also

fftshift
(x)[source]¶ wrapper to numpy.fft.fftshift
>>> from spectrum import fftshift >>> x = [100, 2, 3, 4, 5] >>> fftshift(x) array([ 4, 5, 100, 2, 3])

mag2db
(x)[source]¶ Convert magnitude to decibels (dB)
The relationship between magnitude and decibels is:
>>> from spectrum import mag2db >>> mag2db(0.1) 20.0
See also

nextpow2
(x)[source]¶ returns the smallest power of two that is greater than or equal to the absolute value of x.
This function is useful for optimizing FFT operations, which are most efficient when sequence length is an exact power of two.
Example: >>> from spectrum import nextpow2 >>> x = [255, 256, 257] >>> nextpow2(x) array([8, 8, 9])

onesided_2_twosided
(data)[source]¶ Convert a twosided PSD to a onesided PSD
In order to keep the power in the twosided PSD the same as in the onesided version, the twosided values are 2 times lower than the input data (except for the zerolag and Nlag values).
>>> twosided_2_onesided([10, 4, 6, 8]) array([ 10., 2., 3., 3., 2., 8.])

pow2db
(x)[source]¶ returns the corresponding decibel (dB) value for a power value x.
The relationship between power and decibels is:
>>> from spectrum import pow2db >>> x = pow2db(0.1) >>> x 10.0

twosided
(data)[source]¶ return a twosided vector with nonduplication of the first element
>>> from spectrum import twosided >>> a = [1,2,3] >>> twosided(a) array([3, 2, 1, 2, 3])

twosided_2_onesided
(data)[source]¶ Convert a onesided PSD to a twosided PSD
In order to keep the power in the onesided PSD the same as in the twosided version, the onesided values are twice as much as in the input data (except for the zerolag value).
>>> twosided_2_onesided([10, 2,3,3,2,8]) array([ 10., 4., 6., 8.])
5.5.4. datasets¶
The datasets
module provides data sets to test the
Spectrum functionalities.
data_cosine ([N, A, sampling, freq])
Return a noisy cosine at a given frequency.
marple_data
64complex data length from Marple reference [Marple]
TimeSeries (data[, sampling])
A simple Base Class for various data sets.
Code author: Thomas Cokelaer 2011
Reference:  [Marple]


class
TimeSeries
(data, sampling=1)[source]¶ A simple Base Class for various data sets.
>>> from spectrum import TimeSeries >>> data = [1, 2, 3, 4, 3, 2, 1, 0 ] >>> ts = TimeSeries(data, sampling=1) >>> ts.plot() >>> ts.dt 1.0
Parameters:  data (array) – input data (list or numpy.array)
 sampling – the sampling frequency of the data (default 1Hz)

data_cosine
(N=1024, A=0.1, sampling=1024.0, freq=200)[source]¶ Return a noisy cosine at a given frequency.
Parameters: where w[t] is a white noise of variance 1.
>>> from spectrum import data_cosine >>> a = data_cosine(N=1024, sampling=1024, A=0.5, freq=100)

dolphin_filename
= '/home/docs/checkouts/readthedocs.org/user_builds/pyspectrum/envs/latest/lib/python3.6/sitepackages/spectrum/data/DOLPHINS.wav'¶ filename of a WAV data file 150,000 data points

marple_data
= [(1.349839091+2.011167288j), (2.117270231+0.817693591j), (1.7864216571.291698933j), (1.1622363331.482598066j), (1.641072035+0.372950256j), (0.072213709+1.828492761j), (1.564284801+0.824533045j), (1.0805654531.869776845j), (0.927129091.743406534j), (1.891979456+0.972347319j), (0.105391249+1.602209687j), (1.618367076+0.63751328j), (0.9457045791.079569221j), (1.1355662351.692269921j), (1.855816245+0.986030221j), (1.032083511+1.414613724j), (1.571600199+0.089229003j), (0.2431432311.444692016j), (0.8389809730.985756695j), (1.516003132+0.928058863j), (0.257979959+1.170676708j), (2.057927608+0.343388647j), (0.5786821841.441192508j), (1.5840115551.011150956j), (0.614114344+1.508176208j), (0.710567117+1.130144477j), (1.1002057790.584209621j), (0.1507020291.217450142j), (0.7488561270.804411888j), (0.795235813+1.114466429j), (0.071512341+1.017092347j), (1.7329398390.283070654j), (0.4049453140.78170836j), (1.2937941550.352723092j), (0.119905084+0.905150294j), (0.522588372+0.437393665j), (0.9748384950.670074046j), (0.2752795520.509659231j), (0.8542101980.008278057j), (0.289598197+0.50623399j), (0.283553183+0.250371397j), (0.3596025710.135261074j), (0.1027756710.466086507j), (0.00972265+0.030377999j), (0.185930878+0.8088696j), (0.2436927260.200126961j), (0.2709867660.460243553j), (0.399368525+0.249096692j), (0.2507140040.36299023j), (0.4191163480.389185309j), (0.050458215+0.702862442j), (0.395043731+0.140808776j), (0.7465758920.126762003j), (0.55907619+0.523169816j), (0.344389260.913451135j), (0.7332280280.006237417j), (0.480273813+0.509469569j), (0.033316225+0.087501869j), (0.321229130.254548967j), (0.0630078910.499800682j), (1.2397394180.013479125j), (0.083303742+0.673984587j), (0.762731433+0.40897125j), (0.8958985210.364855707j)]¶ 64complex data length from Marple reference [Marple]

randn
(d0, d1, ..., dn)¶ Return a sample (or samples) from the “standard normal” distribution.
Note
This is a convenience function for users porting code from Matlab, and wraps standard_normal. That function takes a tuple to specify the size of the output, which is consistent with other NumPy functions like numpy.zeros and numpy.ones.
Note
New code should use the
standard_normal
method of adefault_rng()
instance instead; please see the randomquickstart.If positive int_like arguments are provided, randn generates an array of shape
(d0, d1, ..., dn)
, filled with random floats sampled from a univariate “normal” (Gaussian) distribution of mean 0 and variance 1. A single float randomly sampled from the distribution is returned if no argument is provided.Parameters:  d0, d1, …, dn : int, optional
The dimensions of the returned array, must be nonnegative. If no argument is given a single Python float is returned.
Returns:  Z : ndarray or float
A
(d0, d1, ..., dn)
shaped array of floatingpoint samples from the standard normal distribution, or a single such float if no parameters were supplied.
See also
standard_normal
 Similar, but takes a tuple as its argument.
normal
 Also accepts mu and sigma arguments.
Generator.standard_normal
 which should be used for new code.
Notes
For random samples from , use:
sigma * np.random.randn(...) + mu
Examples
>>> np.random.randn() 2.1923875335537315 # random
Twobyfour array of samples from N(3, 6.25):
>>> 3 + 2.5 * np.random.randn(2, 4) array([[4.49401501, 4.00950034, 1.81814867, 7.29718677], # random [ 0.39924804, 4.68456316, 4.99394529, 4.84057254]]) # random
5.5.5. Linear Algebra Tools¶
5.5.5.1. cholesky¶
Cholesky methods
CHOLESKY (A, B[, method])
Solve linear system AX=B using CHOLESKY method.
Code author: Thomas Cokelaer, 2011

CHOLESKY
(A, B, method='scipy')[source]¶ Solve linear system AX=B using CHOLESKY method.
Parameters:  A – an input Hermitian matrix
 B – an array
 method (str) –
a choice of method in [numpy, scipy, numpy_solver]
 numpy_solver relies entirely on numpy.solver (no cholesky decomposition)
 numpy relies on the numpy.linalg.cholesky for the decomposition and numpy.linalg.solve for the inversion.
 scipy uses scipy.linalg.cholesky for the decomposition and scipy.linalg.cho_solve for the inversion.
Description
When a matrix is square and Hermitian (symmetric with lower part being the complex conjugate of the upper one), then the usual triangular factorization takes on the special form:
where is a lower triangular matrix with nonzero real principal diagonal element. The input matrix can be made of complex data. Then, the inversion to find is made as follows:
and
>>> import numpy >>> from spectrum import CHOLESKY >>> A = numpy.array([[ 2.0+0.j , 0.50.5j, 0.2+0.1j], ... [ 0.5+0.5j, 1.0+0.j , 0.30.2j], ... [0.20.1j, 0.3+0.2j, 0.5+0.j ]]) >>> B = numpy.array([ 1.0+3.j , 2.01.j , 0.5+0.8j]) >>> CHOLESKY(A, B) array([ 0.95945946+5.25675676j, 4.418918927.04054054j, 5.13513514+6.35135135j])
5.5.5.2. eigen¶

MINEIGVAL
(T0, T, TOL)[source]¶ Finds the minimum eigenvalue of a Hermitian Toeplitz matrix
The classical power method is used together with a fast Toeplitz equation solution routine. The eigenvector is normalized to unit length.
Parameters:  T0 – Scalar corresponding to real matrix element t(0)
 T – Array of M complex matrix elements t(1),…,t(M) C from the left column of the Toeplitz matrix
 TOL – Real scalar tolerance; routine exits when [ EVAL(k)  EVAL(k1) ]/EVAL(k1) < TOL , where the index k denotes the iteration number.
Returns:  EVAL  Real scalar denoting the minimum eigenvalue of matrix
 EVEC  Array of M complex eigenvector elements associated
Note
 External array T must be dimensioned >= M
 array EVEC must be >= M+1
 Internal array E must be dimensioned >= M+1 .
 dependencies
5.5.5.3. levinson¶
Levinson module
LEVINSON (r[, order, allow_singularity])
LevinsonDurbin recursion.
Code author: Thomas Cokelaer, 2011

LEVINSON
(r, order=None, allow_singularity=False)[source]¶ LevinsonDurbin recursion.
Find the coefficients of a length(r)1 order autoregressive linear process
Parameters:  r – autocorrelation sequence of length N + 1 (first element being the zerolag autocorrelation)
 order – requested order of the autoregressive coefficients. default is N.
 allow_singularity – false by default. Other implementations may be True (e.g., octave)
Returns:  the N+1 autoregressive coefficients
 the prediction errors
 the N reflections coefficients values
This algorithm solves the set of complex linear simultaneous equations using Levinson algorithm.
where is a Hermitian Toeplitz matrix with elements .
Note
Solving this equations by Gaussian elimination would require operations whereas the levinson algorithm requires additions and multiplications.
This is equivalent to solve the following symmetric Toeplitz system of linear equations
where is the input autocorrelation vector, and denotes the complex conjugate of . The input r is typically a vector of autocorrelation coefficients where lag 0 is the first element .
>>> import numpy; from spectrum import LEVINSON >>> T = numpy.array([3., 2+0.5j, .71j]) >>> a, e, k = LEVINSON(T)

rlevinson
(a, efinal)[source]¶ computes the autocorrelation coefficients, R based on the prediction polynomial A and the final prediction error Efinal, using the stepdown algorithm.
Works for real or complex data
Parameters:  a –
 efinal –
Returns:  R, the autocorrelation
 U prediction coefficient
 kr reflection coefficients
 e errors
A should be a minimum phase polynomial and A(1) is assumed to be unity.
Returns:  (P+1) by (P+1) upper triangular matrix, U,
 that holds the i’th order prediction polynomials
Ai, i=1:P, where P is the order of the input
polynomial, A.[ 1 a1(1)* a2(2)* ….. aP(P) * ] [ 0 1 a2(1)* ….. aP(P1)* ]
 U = [ ……………………………]
 [ 0 0 0 ….. 1 ]
from which the i’th order prediction polynomial can be extracted using Ai=U(i+1:1:1,i+1)’. The first row of U contains the conjugates of the reflection coefficients, and the K’s may be extracted using, K=conj(U(1,2:end)).
Todo
remove the conjugate when data is real data, clean up the code test and doc.
5.5.5.4. toeplitz¶
Toeplitz module
These functions are not yet used by other functions, which explains the lack of documentation, test, examples.
Nevertheless, they can be used for production.
HERMTOEP (T0, T, Z)
solve Tx=Z by a variation of Levinson algorithm where T is a complex hermitian toeplitz matrix
Code author: Thomas Cokelaer, 2011
5.5.5.5. linalg¶
Linear algebra tools
csvd (A)
SVD decomposition using numpy.linalg.svd
corrmtx (x_input, m[, method])
Correlation matrix
pascal (n)
Return Pascal matrix
Code author: Thomas Cokelaer 2011

pascal
(n)[source]¶ Return Pascal matrix
Parameters: n (int) – size of the matrix >>> from spectrum import pascal >>> pascal(6) array([[ 1., 1., 1., 1., 1., 1.], [ 1., 2., 3., 4., 5., 6.], [ 1., 3., 6., 10., 15., 21.], [ 1., 4., 10., 20., 35., 56.], [ 1., 5., 15., 35., 70., 126.], [ 1., 6., 21., 56., 126., 252.]])
Todo
use the symmetric property to improve computational time if needed

csvd
(A)[source]¶ SVD decomposition using numpy.linalg.svd
Parameters: A – a M by N matrix Returns:  U, a M by M matrix
 S the N eigen values
 V a N by N matrix
See
numpy.linalg.svd()
for a detailed documentation.Should return the same as in [Marple] , CSVD routine.
U, S, V = numpy.linalg.svd(A) U, S, V = cvsd(A)

corrmtx
(x_input, m, method='autocorrelation')[source]¶ Correlation matrix
This function is used by PSD estimator functions. It generates the correlation matrix from a correlation data set and a maximum lag.
Parameters:  x (array) – autocorrelation samples (1D)
 m (int) – the maximum lag
Depending on the choice of the method, the correlation matrix has different sizes, but the number of rows is always m+1.
Method can be :
 ‘autocorrelation’: (default) X is the (n+m)by(m+1) rectangular Toeplitz matrix derived using prewindowed and postwindowed data.
 ‘prewindowed’: X is the nby(m+1) rectangular Toeplitz matrix derived using prewindowed data only.
 ‘postwindowed’: X is the nby(m+1) rectangular Toeplitz matrix that derived using postwindowed data only.
 ‘covariance’: X is the (nm)by(m+1) rectangular Toeplitz matrix derived using nonwindowed data.
 ‘modified’: X is the 2(nm)by(m+1) modified rectangular Toeplitz matrix that generates an autocorrelation estimate for the length n data vector x, derived using forward and backward prediction error estimates.
Returns:  the autocorrelation matrix
 R, the (m+1)by(m+1) autocorrelation matrix estimate
R= X'*X
.
Algorithm details:
The autocorrelation matrix is a rectangular Toeplitz data matrix:
where the lower triangular matrix is
where the rectangular matrix is
and where the upper triangular matrix is
From this definition, the prewindowed matrix is
the postwindowed matrix is
the covariance matrix is:
and the modified covariance matrix is:
5.5.5.6. Transfer function¶
Linear systems

tf2zp
(b, a)[source]¶ Convert transfer function filter parameters to zeropolegain form
Find the zeros, poles, and gains of this continuoustime system:
Warning
b and a must have the same length.
from spectrum import tf2zp b = [2,3,0] a = [1, 0.4, 1] [z,p,k] = tf2zp(b,a) % Obtain zeropolegain form z = 1.5 0 p = 0.2000 + 0.9798i 0.2000  0.9798i k = 2
Parameters:  b – numerator
 a – denominator
 fill – If True, check that the length of a and b are the same. If not, create a copy of the shortest element and append zeros to it.
Returns: z (zeros), p (poles), g (gain)
Convert transfer function f(x)=sum(b*x^n)/sum(a*x^n) to zeropolegain form f(x)=g*prod(1z*x)/prod(1p*x)
Todo
See if tf2ss followed by ss2zp gives better results. These are available from the control system toolbox. Note that the control systems toolbox doesn’t bother, but instead uses
See also
scipy.signal.tf2zpk, which gives the same results but uses a different algorithm (z^1 instead of z).

eqtflength
(b, a)[source]¶ Given two list or arrays, pad with zeros the shortest array
Parameters:  b – list or array
 a – list or array
>>> from spectrum.transfer import eqtflength >>> a = [1,2] >>> b = [1,2,3,4] >>> a, b, = eqtflength(a,b)

ss2zpk
(a, b, c, d, input=0)[source]¶ Statespace representation to zeropolegain representation.
Parameters:  A – ndarray Statespace representation of linear system.
 B – ndarray Statespace representation of linear system.
 C – ndarray Statespace representation of linear system.
 D – ndarray Statespace representation of linear system.
 input (int) – optional For multipleinput systems, the input to use.
Returns:  z, p : sequence Zeros and poles.
 k : float System gain.
Note
wrapper of scipy function ss2zpk

tf2zpk
(b, a)[source]¶ Return zero, pole, gain (z,p,k) representation from a numerator, denominator representation of a linear filter.
Convert zeropolegain filter parameters to transfer function form
Parameters:  b (ndarray) – numerator polynomial.
 a (ndarray) – numerator and denominator polynomials.
Returns:  z : ndarray Zeros of the transfer function.
 p : ndarray Poles of the transfer function.
 k : float System gain.
If some values of b are too close to 0, they are removed. In that case, a BadCoefficients warning is emitted.
>>> import scipy.signal >>> from spectrum.transfer import tf2zpk >>> [b, a] = scipy.signal.butter(3.,.4) >>> z, p ,k = tf2zpk(b,a)
See also
Note
wrapper of scipy function tf2zpk

zpk2ss
(z, p, k)[source]¶ Zeropolegain representation to statespace representation
Parameters:  z,p (sequence) – Zeros and poles.
 k (float) – System gain.
Returns:  A, B, C, D : ndarray Statespace matrices.
Note
wrapper of scipy function zpk2ss

zpk2tf
(z, p, k)[source]¶ Return polynomial transfer function representation from zeros and poles
Parameters:  z (ndarray) – Zeros of the transfer function.
 p (ndarray) – Poles of the transfer function.
 k (float) – System gain.
Returns: b : ndarray Numerator polynomial. a : ndarray Numerator and denominator polynomials.
zpk2tf()
forms transfer function polynomials from the zeros, poles, and gains of a system in factored form.zpk2tf(z,p,k) finds a rational transfer function
given a system in factored transfer function form
with p being the pole locations, and z the zero locations, with as many. The gains for each numerator transfer function are in vector k. The zeros and poles must be real or come in complex conjugate pairs. The polynomial denominator coefficients are returned in row vector a and the polynomial numerator coefficients are returned in matrix b, which has as many rows as there are columns of z.
Inf values can be used as place holders in z if some columns have fewer zeros than others.
Note
wrapper of scipy function zpk2tf

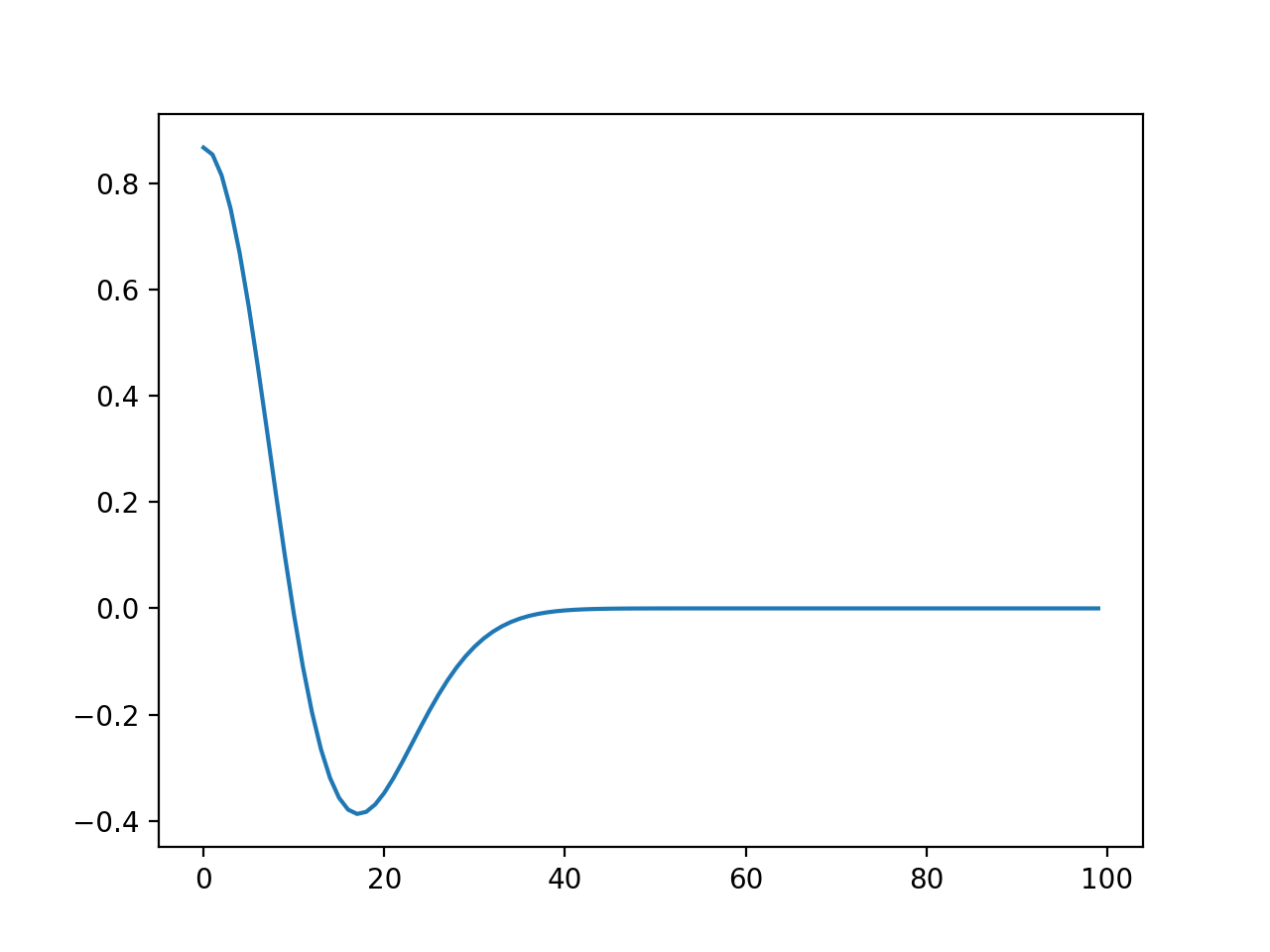

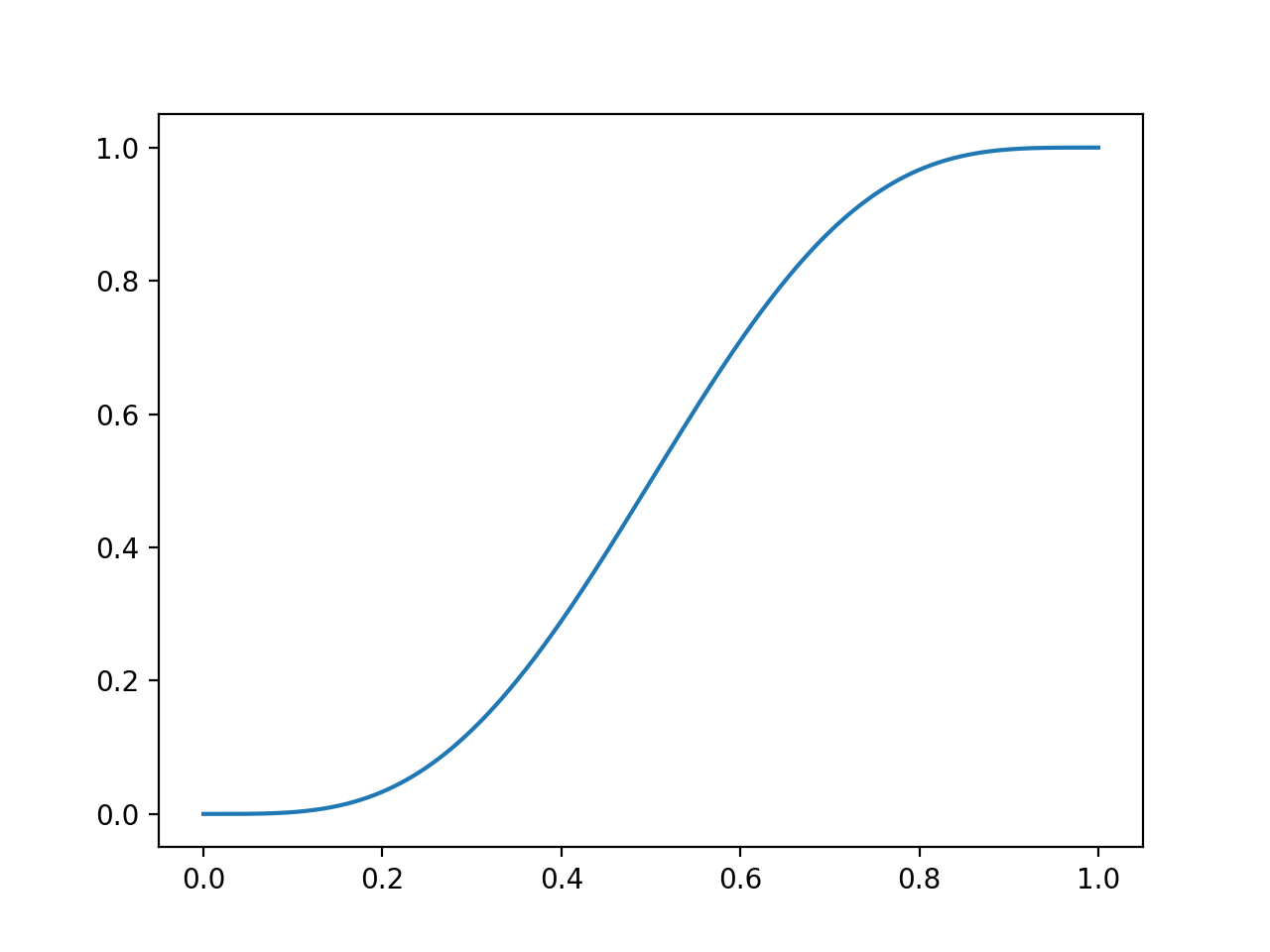

5.5.6. Waveforms¶

morlet
(lb, ub, n)[source]¶ Generate the Morlet waveform
The Morlet waveform is defined as follows:
Parameters:  lb – lower bound
 ub – upper bound
 n (int) – waveform data samples

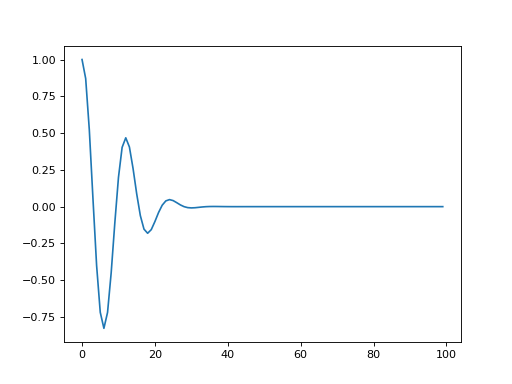

from spectrum import morlet from pylab import plot plot(morlet(0,10,100))
(Source code, png, hires.png, pdf)

chirp
(t, f0=0.0, t1=1.0, f1=100.0, form='linear', phase=0)[source]¶ Evaluate a chirp signal at time t.
A chirp signal is a frequency swept cosine wave.
Parameters: The parameter form can be:
 ‘linear’
 ‘quadratic’
 ‘logarithmic’
Example:

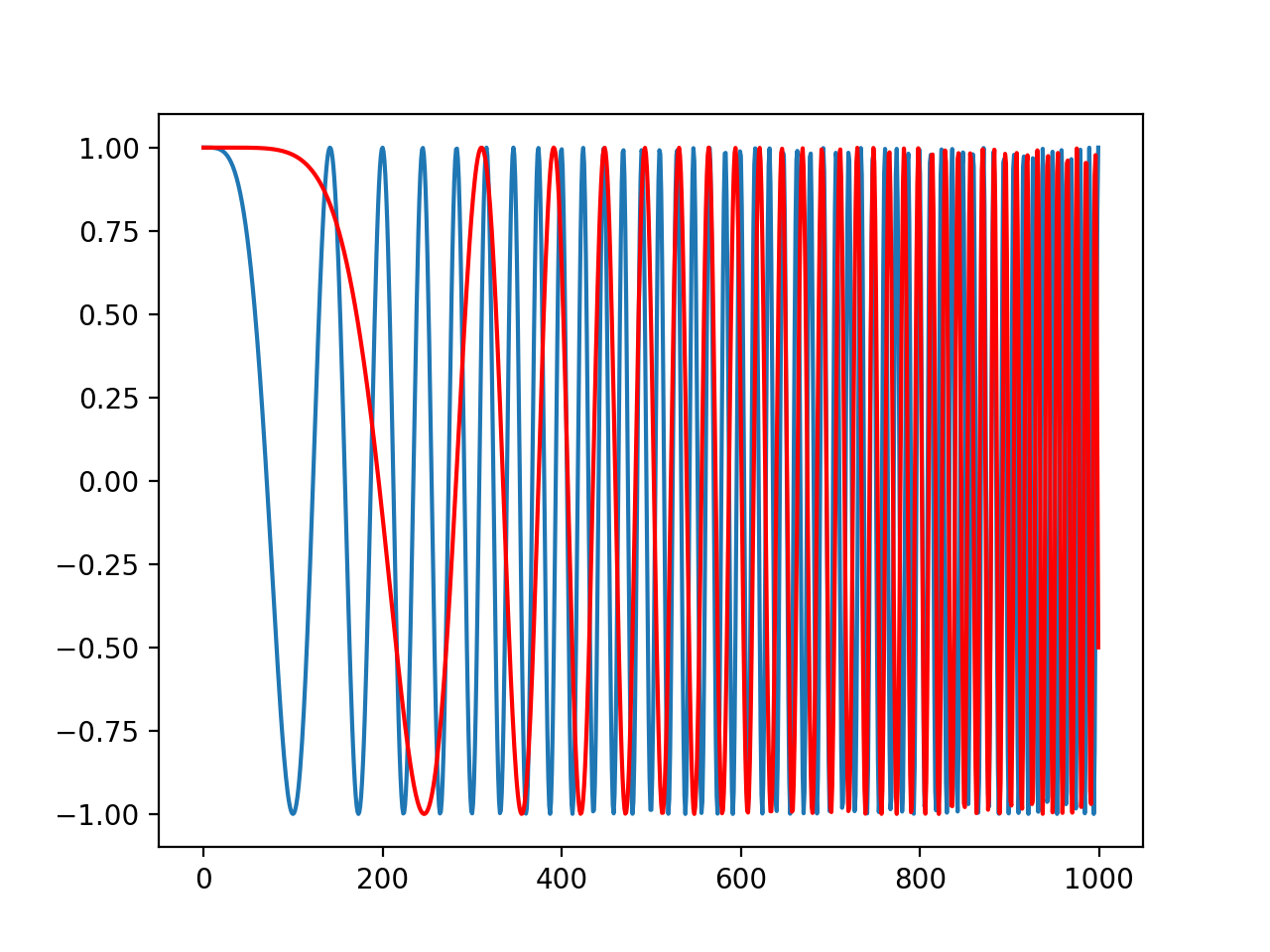

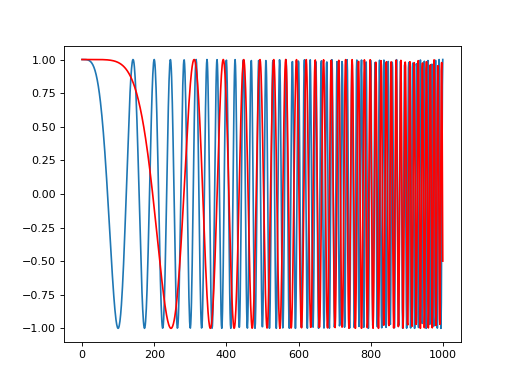

from spectrum import chirp from pylab import linspace, plot t = linspace(0, 1, 1000) y = chirp(t, form='linear') plot(y) y = chirp(t, form='quadratic') plot(y, 'r')
(Source code, png, hires.png, pdf)
5.5.7. Linear prediction¶
Linear prediction tools
References:  [Kay]


ac2poly
(data)[source]¶ Convert autocorrelation sequence to prediction polynomial
Parameters: data (array) – input data (list or numpy.array) Returns:  AR parameters
 noise variance
This is an alias to:
a, e, c = LEVINSON(data)
Example: >>> from spectrum import ac2poly >>> from numpy import array >>> r = [5, 2, 1.01] >>> ar, e = ac2poly(r) >>> ar array([ 1. , 0.38, 0.05]) >>> e 4.1895000000000007

poly2ac
(poly, efinal)[source]¶ Convert prediction filter polynomial to autocorrelation sequence
Parameters:  poly (array) – the AR parameters
 efinal – an estimate of the final error
Returns: the autocorrelation sequence in complex format.
>>> from numpy import array >>> from spectrum import poly2ac >>> poly = [ 1. , 0.38 , 0.05] >>> efinal = 4.1895 >>> poly2ac(poly, efinal) array([ 5.00+0.j, 2.00+0.j, 1.010.j])

ac2rc
(data)[source]¶ Convert autocorrelation sequence to reflection coefficients
Parameters: data – an autorrelation vector Returns: the reflection coefficient and data[0] This is an alias to:
a, e, c = LEVINSON(data) c, data[0]

rc2poly
(kr, r0=None)[source]¶ convert reflection coefficients to prediction filter polynomial
Parameters: k – reflection coefficients

rc2ac
(k, R0)[source]¶ Convert reflection coefficients to autocorrelation sequence.
Parameters:  k – reflection coefficients
 R0 – zerolag autocorrelation
Returns: the autocorrelation sequence

is2rc
(inv_sin)[source]¶ Convert inverse sine parameters to reflection coefficients.
Parameters: inv_sin – inverse sine parameters Returns: reflection coefficients Reference: J.R. Deller, J.G. Proakis, J.H.L. Hansen, “DiscreteTime Processing of Speech Signals”, Prentice Hall, Section 7.4.5.

rc2is
(k)[source]¶ Convert reflection coefficients to inverse sine parameters.
Parameters: k – reflection coefficients Returns: inverse sine parameters  Reference: J.R. Deller, J.G. Proakis, J.H.L. Hansen, “DiscreteTime
 Processing of Speech Signals”, Prentice Hall, Section 7.4.5.

rc2lar
(k)[source]¶ Convert reflection coefficients to log area ratios.
Parameters: k – reflection coefficients Returns: inverse sine parameters The log area ratio is defined by G = log((1+k)/(1k)) , where the K parameter is the reflection coefficient.
References: [1] J. Makhoul, “Linear Prediction: A Tutorial Review,” Proc. IEEE, Vol.63, No.4, pp.561580, Apr 1975.

lar2rc
(g)[source]¶ Convert log area ratios to reflection coefficients.
Parameters: g – log area ratios Returns: the reflection coefficients References: [1] J. Makhoul, “Linear Prediction: A Tutorial Review,” Proc. IEEE, Vol.63, No.4, pp.561580, Apr 1975.

poly2rc
(a, efinal)[source]¶ Convert prediction filter polynomial to reflection coefficients
Parameters:  a – AR parameters
 efinal –

lsf2poly
(lsf)[source]¶ Convert line spectral frequencies to prediction filter coefficients
returns a vector a containing the prediction filter coefficients from a vector lsf of line spectral frequencies.
>>> from spectrum import lsf2poly >>> lsf = [0.7842 , 1.5605 , 1.8776 , 1.8984, 2.3593] >>> a = lsf2poly(lsf)
# array([ 1.00000000e+00, 6.14837835e01, 9.89884967e01, # 9.31594056e05, 3.13713832e03, 8.12002261e03 ])
See also
poly2lsf, rc2poly, ac2poly, rc2is

poly2lsf
(a)[source]¶ Prediction polynomial to line spectral frequencies.
converts the prediction polynomial specified by A, into the corresponding line spectral frequencies, LSF. normalizes the prediction polynomial by A(1).
>>> from spectrum import poly2lsf >>> a = [1.0000, 0.6149, 0.9899, 0.0000 ,0.0031, 0.0082] >>> lsf = poly2lsf(a) >>> lsf = array([0.7842, 1.5605, 1.8776, 1.8984, 2.3593])
See also
lsf2poly, poly2rc, poly2qc, rc2is
