5.1. Fourier Methods¶
5.1.1. Power Spectrum Density based on Fourier Spectrum¶
-
default_NFFT
= 4096¶ default number of samples used to compute FFT
-
randn
(d0, d1, ..., dn)¶ Return a sample (or samples) from the “standard normal” distribution.
Note
This is a convenience function for users porting code from Matlab, and wraps standard_normal. That function takes a tuple to specify the size of the output, which is consistent with other NumPy functions like numpy.zeros and numpy.ones.
Note
New code should use the
standard_normal
method of adefault_rng()
instance instead; please see the random-quick-start.If positive int_like arguments are provided, randn generates an array of shape
(d0, d1, ..., dn)
, filled with random floats sampled from a univariate “normal” (Gaussian) distribution of mean 0 and variance 1. A single float randomly sampled from the distribution is returned if no argument is provided.Parameters: - d0, d1, …, dn : int, optional
The dimensions of the returned array, must be non-negative. If no argument is given a single Python float is returned.
Returns: - Z : ndarray or float
A
(d0, d1, ..., dn)
-shaped array of floating-point samples from the standard normal distribution, or a single such float if no parameters were supplied.
See also
standard_normal
- Similar, but takes a tuple as its argument.
normal
- Also accepts mu and sigma arguments.
Generator.standard_normal
- which should be used for new code.
Notes
For random samples from , use:
sigma * np.random.randn(...) + mu
Examples
>>> np.random.randn() 2.1923875335537315 # random
Two-by-four array of samples from N(3, 6.25):
>>> 3 + 2.5 * np.random.randn(2, 4) array([[-4.49401501, 4.00950034, -1.81814867, 7.29718677], # random [ 0.39924804, 4.68456316, 4.99394529, 4.84057254]]) # random
This module provides Periodograms (classics, daniell, bartlett)
Periodogram (data[, sampling, window, NFFT, …]) |
The Periodogram class provides an interface to periodogram PSDs |
DaniellPeriodogram (data, P[, NFFT, detrend, …]) |
Return Daniell’s periodogram. |
speriodogram (x[, NFFT, detrend, sampling, …]) |
Simple periodogram, but matrices accepted. |
WelchPeriodogram (data[, NFFT, sampling]) |
Simple periodogram wrapper of numpy.psd function. |
speriodogram (x[, NFFT, detrend, sampling, …]) |
Simple periodogram, but matrices accepted. |
Code author: Thomas Cokelaer 2011
References: | See [Marple] |
---|
Usage
You can compute a periodogram using speriodogram()
:
from spectrum import speriodogram, marple_data
from pylab import plot
p = speriodogram(marple_data)
plot(p)
However, the output is not always easy to manipulate or plot, therefore
it is advised to use the class Periodogram
instead:
from spectrum import Periodogram, marple_data
p = Periodogram(marple_data)
p.plot()
This class will take care of the plotting and internal state of the computation. For instance, if you can change the output easily:

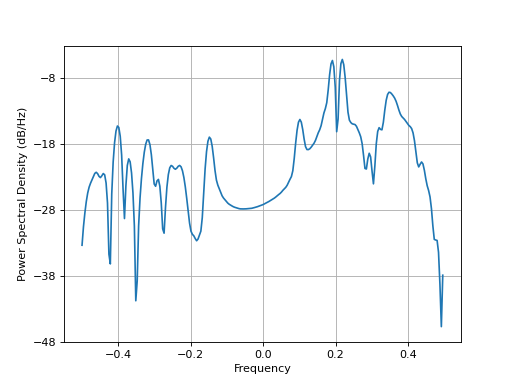

p.plot(sides='twosided')
-
class
pdaniell
(data, P, sampling=1.0, window='hann', NFFT=None, scale_by_freq=True, detrend=None)[source]¶ The pdaniell class provides an interface to DaniellPeriodogram
from spectrum import data_cosine, pdaniell data = data_cosine(N=4096, sampling=4096) p = pdaniell(data, 8, NFFT=4096) p.plot()
pdaniell Constructor
Parameters: - data (array) – input data (list or numpy.array)
- P (int) – number of neighbours to average over.
- sampling (float) – sampling frequency of the input
data
. - window (str) – a tapering window. See
Window
. - NFFT (int) – total length of the final data sets (padded with zero if needed; default is 4096)
- scale_by_freq (bool) –
- detrend (str) –
-
speriodogram
(x, NFFT=None, detrend=True, sampling=1.0, scale_by_freq=True, window='hamming', axis=0)[source]¶ Simple periodogram, but matrices accepted.
Parameters: Returns: 2-sided PSD if complex data, 1-sided if real.
if a matrix is provided (using numpy.matrix), then a periodogram is computed for each row. The returned matrix has the same shape as the input matrix.
The mean of the input data is also removed from the data before computing the psd.

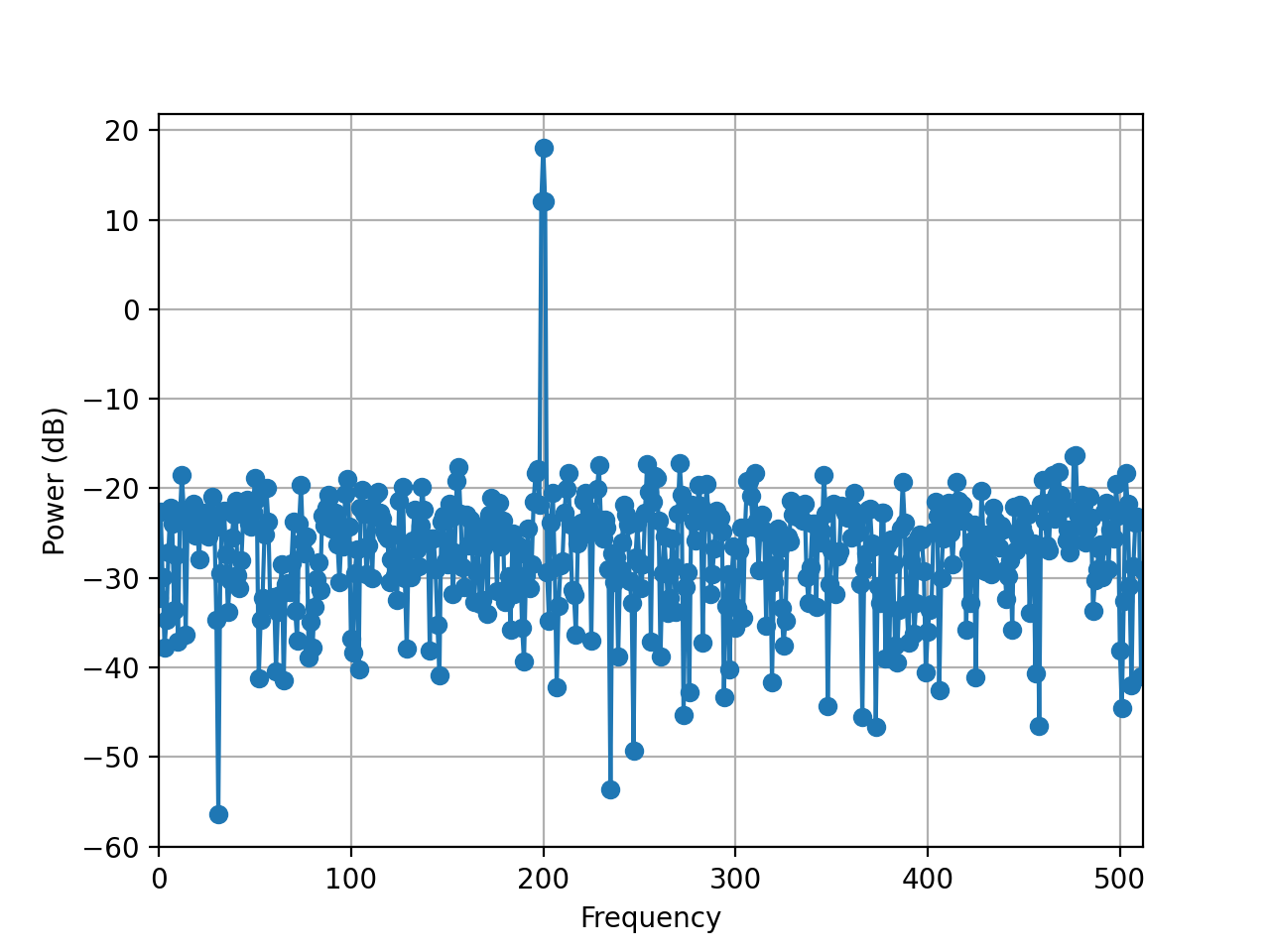

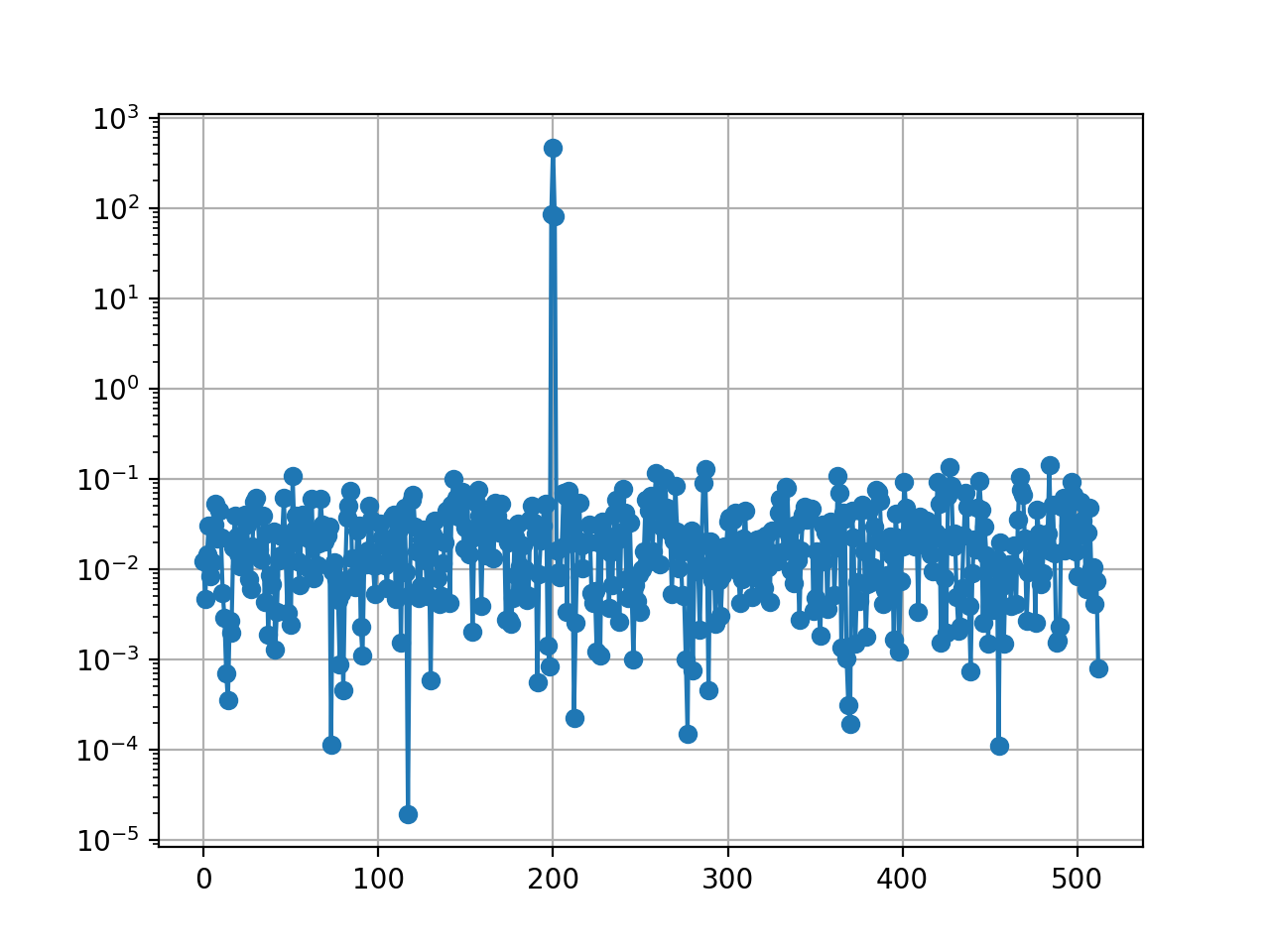

from pylab import grid, semilogy from spectrum import data_cosine, speriodogram data = data_cosine(N=1024, A=0.1, sampling=1024, freq=200) semilogy(speriodogram(data, detrend=False, sampling=1024), marker='o') grid(True)
(Source code, png, hires.png, pdf)

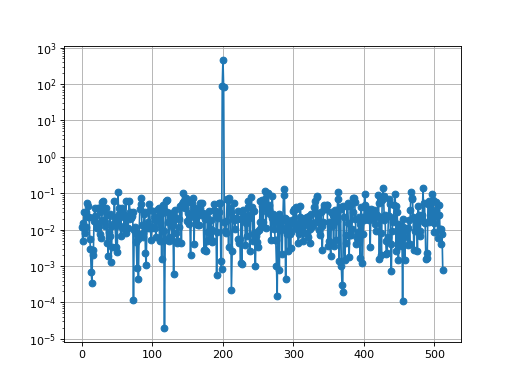

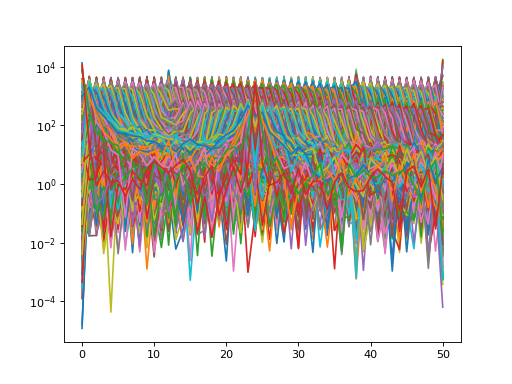

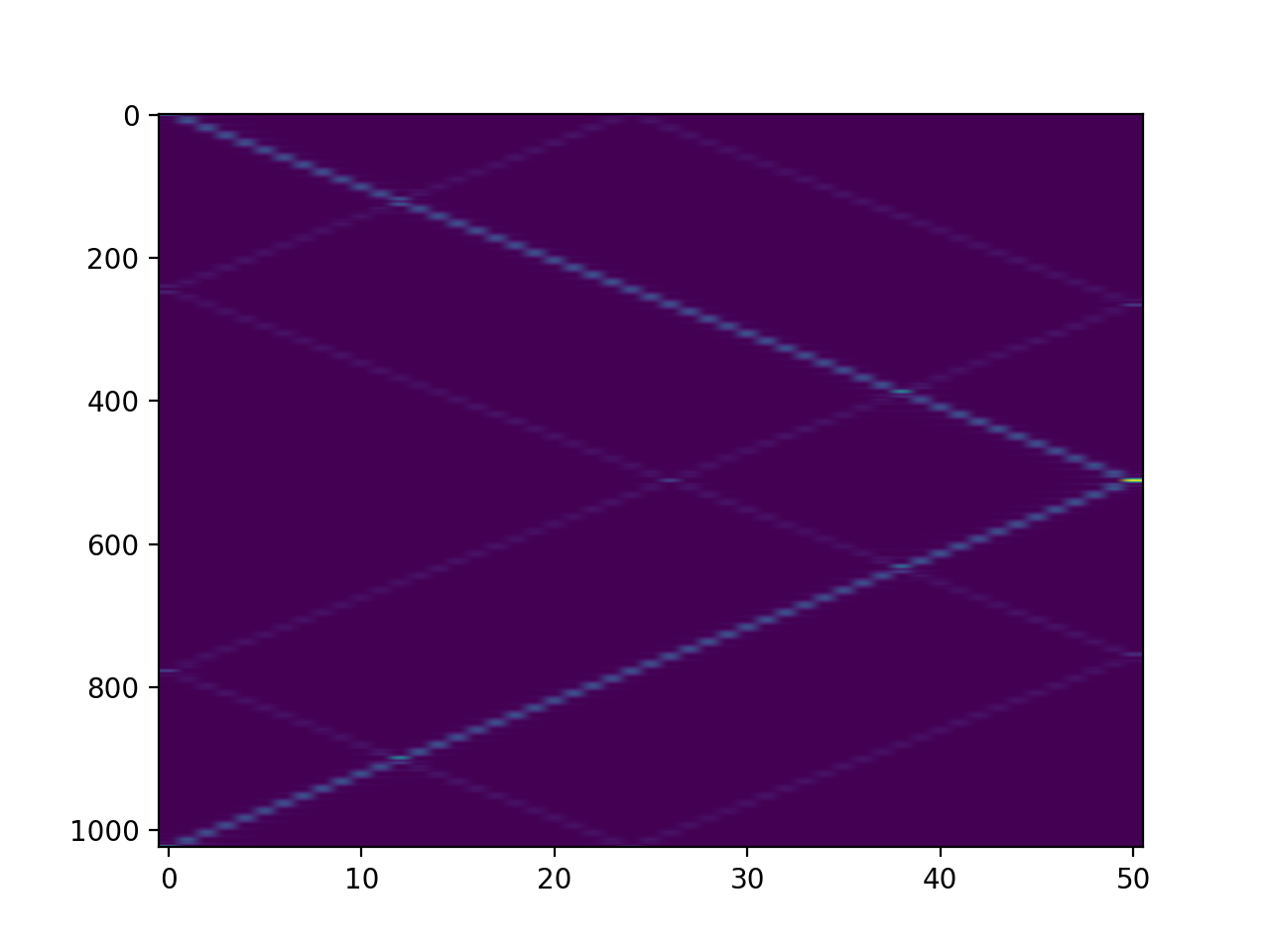

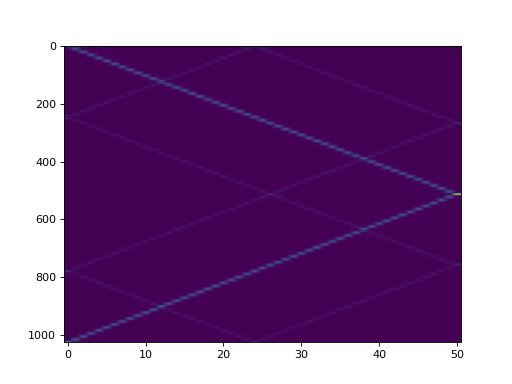

import numpy from spectrum import speriodogram, data_cosine from pylab import figure, semilogy, figure ,imshow # create N data sets and make the frequency dependent on the time N = 100 m = numpy.concatenate([data_cosine(N=1024, A=0.1, sampling=1024, freq=x) for x in range(1, N)]); m.resize(N, 1024) res = speriodogram(m) figure(1) semilogy(res) figure(2) imshow(res.transpose(), aspect='auto')
Todo
a proper spectrogram class/function that takes care of normalisation
-
class
Periodogram
(data, sampling=1.0, window='hann', NFFT=None, scale_by_freq=False, detrend=None)[source]¶ The Periodogram class provides an interface to periodogram PSDs
from spectrum import Periodogram, data_cosine data = data_cosine(N=1024, A=0.1, sampling=1024, freq=200) p = Periodogram(data, sampling=1024) p.plot(marker='o')
(Source code, png, hires.png, pdf)
Periodogram Constructor
Parameters:
-
WelchPeriodogram
(data, NFFT=None, sampling=1.0, **kargs)[source]¶ Simple periodogram wrapper of numpy.psd function.
Parameters: Technical documentation: When we calculate the periodogram of a set of data we get an estimation of the spectral density. In fact as we use a Fourier transform and a truncated segments the spectrum is the convolution of the data with a rectangular window which Fourier transform is
Thus oscillations and sidelobes appears around the main frequency. One aim of t he tapering is to reduced this effects. We multiply data by a window whose sidelobes are much smaller than the main lobe. Classical window is hanning window. But other windows are available. However we must take into account this energy and divide the spectrum by energy of taper used. Thus periodogram becomes :
with
from spectrum import WelchPeriodogram, marple_data psd = WelchPeriodogram(marple_data, 256)
(Source code, png, hires.png, pdf)
-
DaniellPeriodogram
(data, P, NFFT=None, detrend='mean', sampling=1.0, scale_by_freq=True, window='hamming')[source]¶ Return Daniell’s periodogram.
To reduce fast fluctuations of the spectrum one idea proposed by daniell is to average each value with points in its neighboorhood. It’s like a low filter.
where P is the number of points to average.
Daniell’s periodogram is the convolution of the spectrum with a low filter:
Example:
>>> DaniellPeriodogram(data, 8)
if N/P is not integer, the final values of the original PSD are not used.
using DaniellPeriodogram(data, 0) should give the original PSD.
Correlogram PSD estimates
This module provides Correlograms methods
CORRELOGRAMPSD (X[, Y, lag, window, norm, …]) |
PSD estimate using correlogram method. |
pcorrelogram (data[, sampling, lag, window, …]) |
The Correlogram class provides an interface to CORRELOGRAMPSD() . |
Code author: Thomas Cokelaer 2011
References: | See [Marple] |
---|
-
CORRELOGRAMPSD
(X, Y=None, lag=-1, window='hamming', norm='unbiased', NFFT=4096, window_params={}, correlation_method='xcorr')[source]¶ PSD estimate using correlogram method.
Parameters: - X (array) – complex or real data samples X(1) to X(N)
- Y (array) – complex data samples Y(1) to Y(N). If provided, computes the cross PSD, otherwise the PSD is returned
- lag (int) – highest lag index to compute. Must be less than N
- window_name (str) – see
window
for list of valid names - norm (str) – one of the valid normalisation of
xcorr()
(biased, unbiased, coeff, None) - NFFT (int) – total length of the final data sets (padded with zero if needed; default is 4096)
- correlation_method (str) – either xcorr or CORRELATION. CORRELATION should be removed in the future.
Returns: - Array of real (cross) power spectral density estimate values. This is a two sided array with negative values following the positive ones whatever is the input data (real or complex).
Description:
The exact power spectral density is the Fourier transform of the autocorrelation sequence:
The correlogram method of PSD estimation substitutes a finite sequence of autocorrelation estimates in place of . This estimation can be computed with
xcorr()
orCORRELATION()
by chosing a proprer lag L. The estimated PSD is thenThe lag index must be less than the number of data samples N. Ideally, it should be around L/10 [Marple] so as to avoid greater statistical variance associated with higher lags.
To reduce the leakage of the implicit rectangular window and therefore to reduce the bias in the estimate, a tapering window is normally used and lead to the so-called Blackman and Tukey correlogram:
The correlogram for the cross power spectral estimate is
which is computed if
Y
is not provide. In such case, so we compute the correlation only once.from spectrum import CORRELOGRAMPSD, marple_data from spectrum.tools import cshift from pylab import log10, axis, grid, plot,linspace psd = CORRELOGRAMPSD(marple_data, marple_data, lag=15) f = linspace(-0.5, 0.5, len(psd)) psd = cshift(psd, len(psd)/2) plot(f, 10*log10(psd/max(psd))) axis([-0.5,0.5,-50,0]) grid(True)

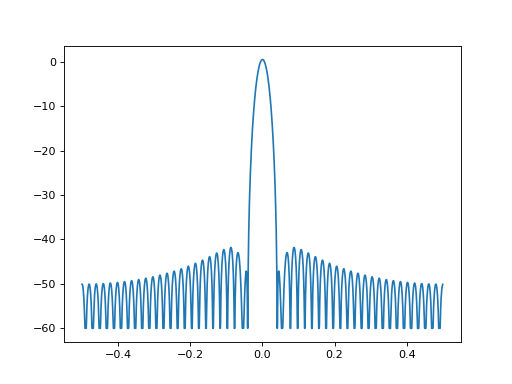

(Source code, png, hires.png, pdf)
See also
create_window()
,CORRELATION()
,xcorr()
,pcorrelogram
.
-
class
pcorrelogram
(data, sampling=1.0, lag=-1, window='hamming', NFFT=None, scale_by_freq=True, detrend=None)[source]¶ The Correlogram class provides an interface to
CORRELOGRAMPSD()
.It returns an object that inherits from
FourierSpectrum

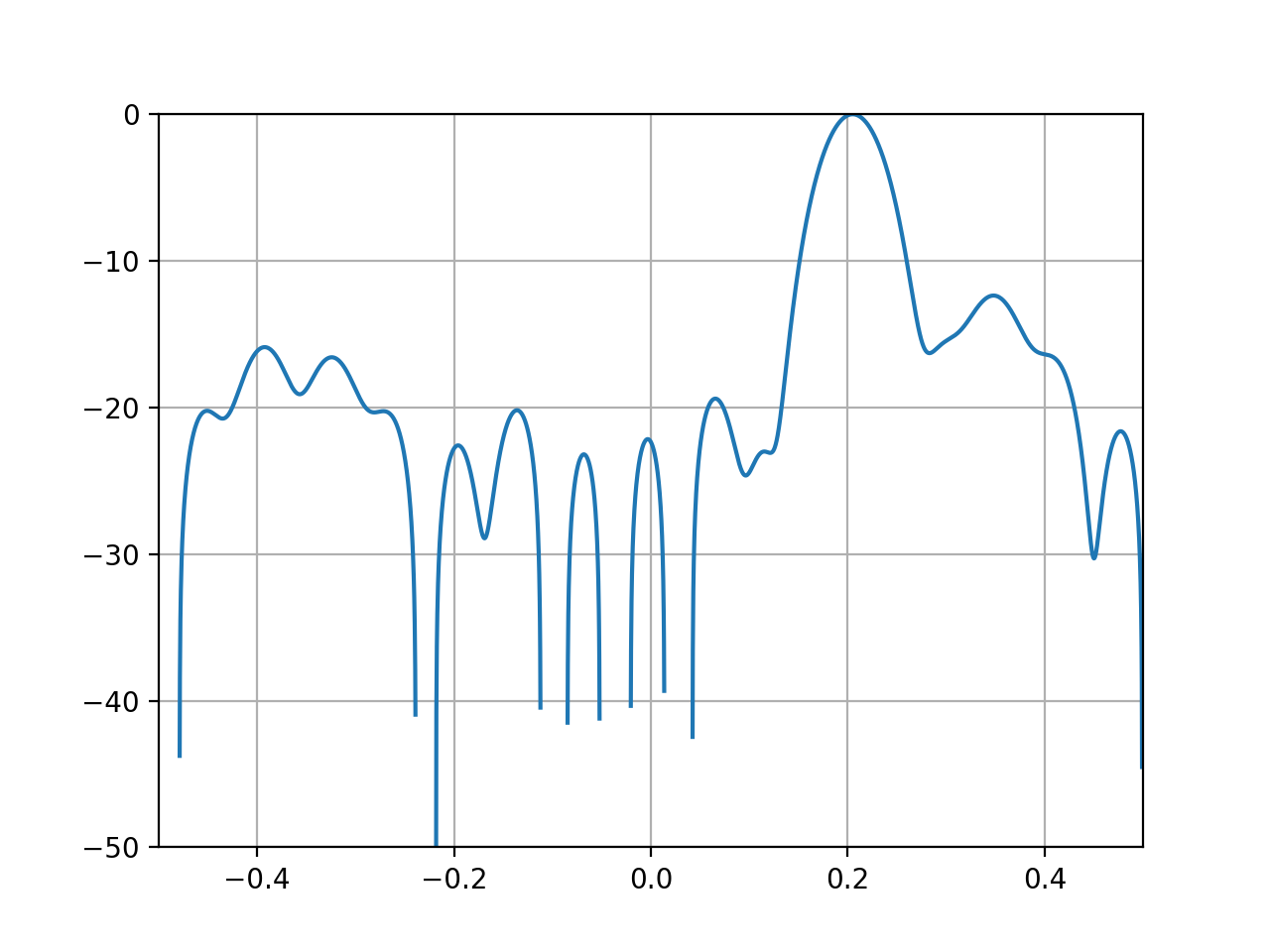

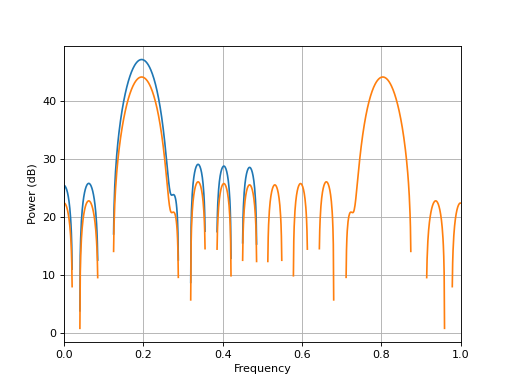

and therefore ease the manipulation of PSDs.from spectrum import pcorrelogram, data_cosine p = pcorrelogram(data_cosine(N=1024), lag=15) p.plot() p.plot(sides='twosided')
(Source code, png, hires.png, pdf)
Correlogram Constructor
Parameters:
5.1.2. Tapering Windows¶
This module contains tapering windows utilities.
Window (N[, name, norm]) |
Window tapering object |
window_visu ([N, name]) |
A Window visualisation tool |
create_window (N[, name]) |
Returns the N-point window given a valid name |

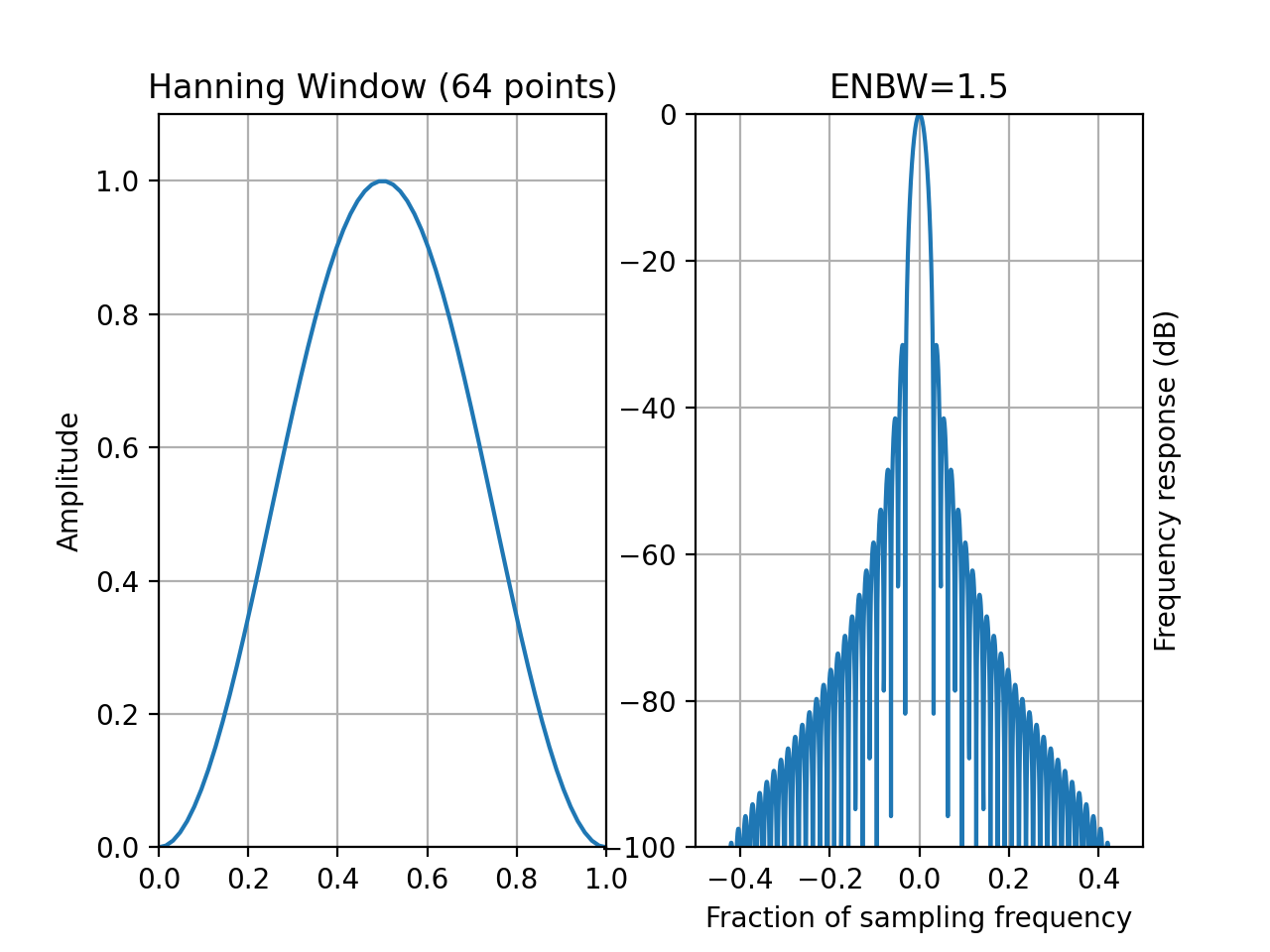

window_hann (N) |
Hann window (or Hanning). |
window_hamming (N) |
Hamming window |
window_bartlett (N) |
Bartlett window (wrapping of numpy.bartlett) also known as Fejer |
window_bartlett_hann (N) |
Bartlett-Hann window |
window_blackman (N[, alpha]) |
Blackman window |

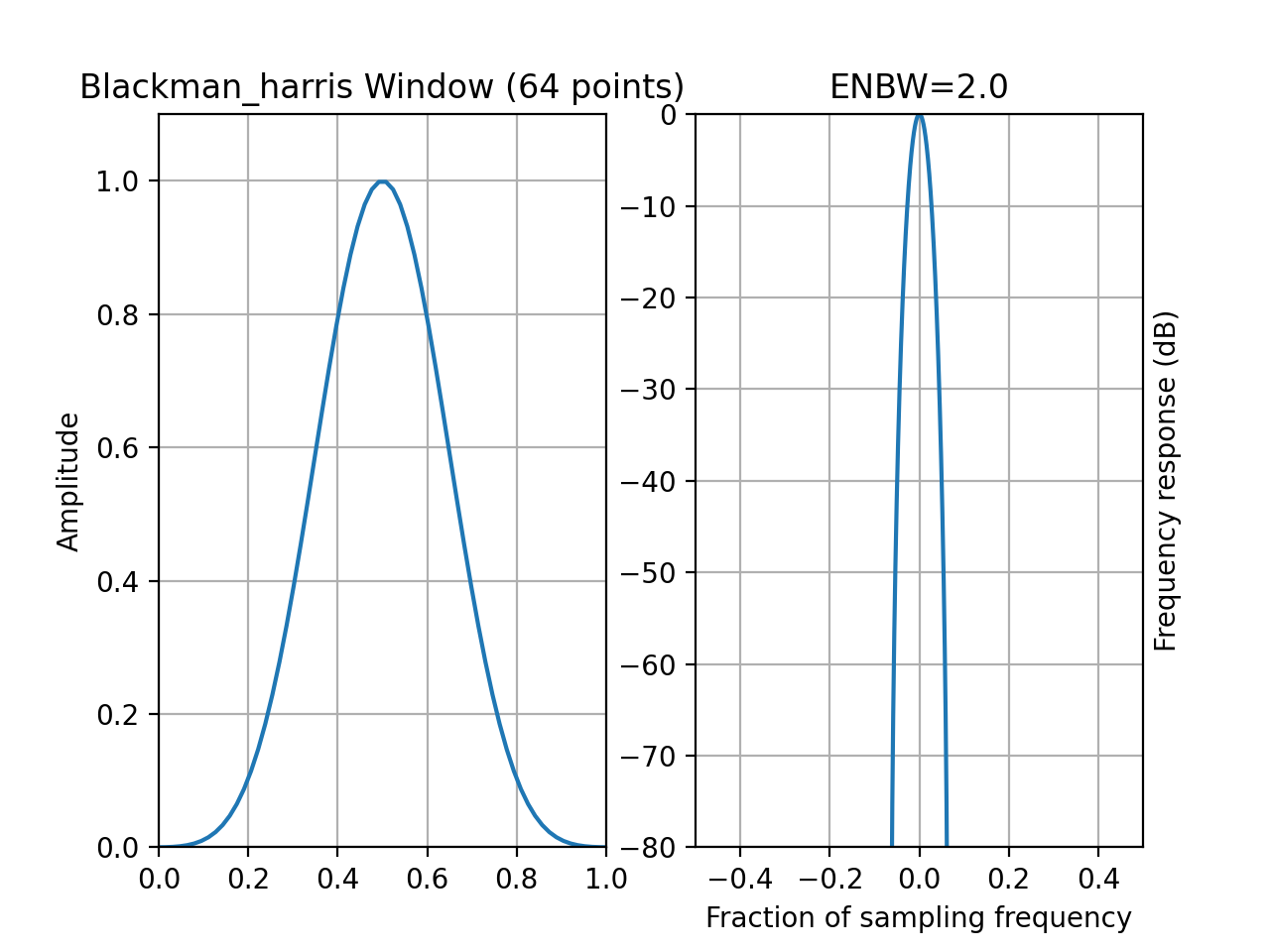

window_blackman_harris (N) |
Blackman Harris window |
window_blackman_nuttall (N) |
Blackman Nuttall window |
window_bohman (N) |
Bohman tapering window |
window_chebwin (N[, attenuation]) |
Cheb window |

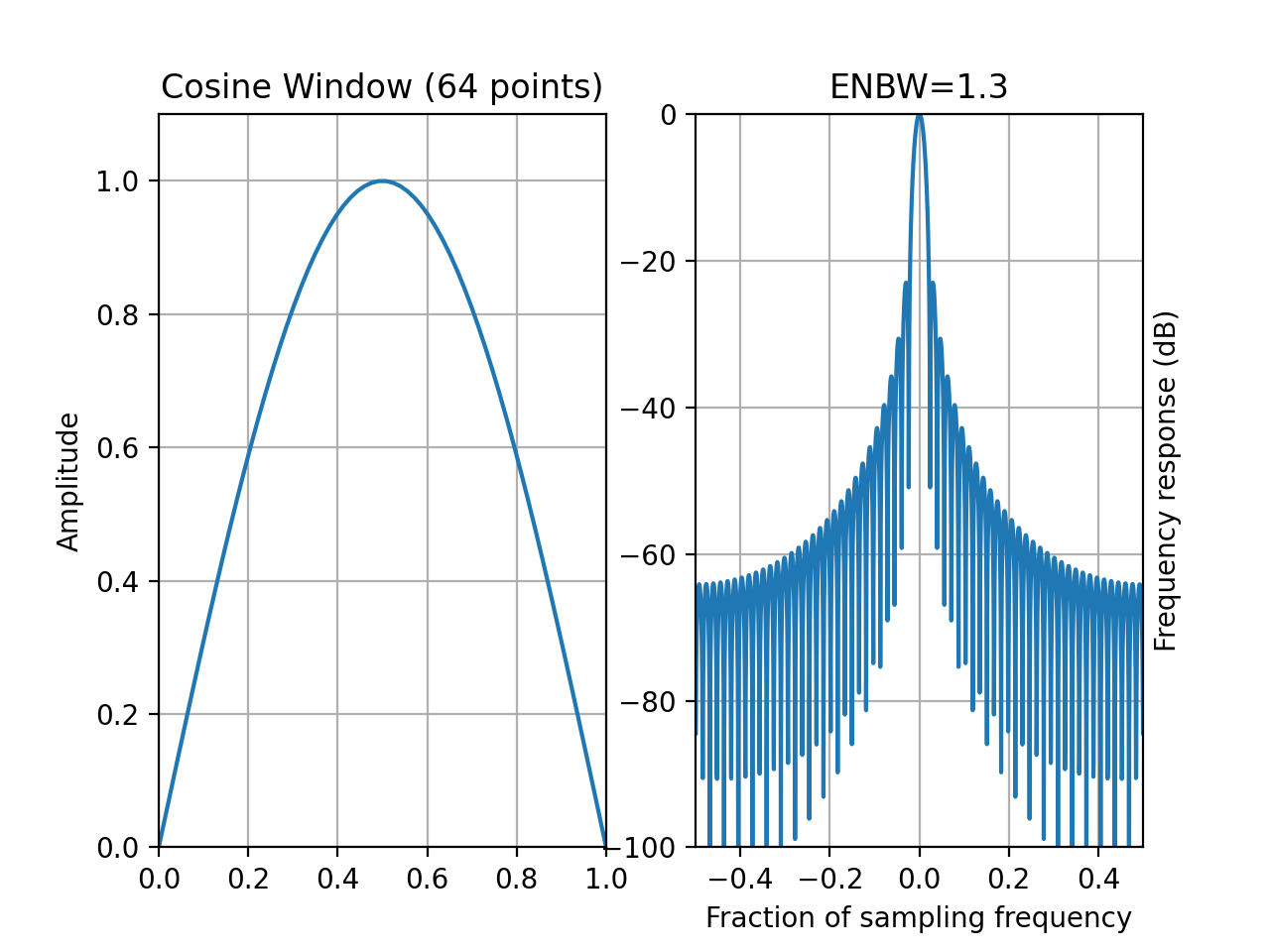

window_cosine (N) |
Cosine tapering window also known as sine window. |
window_flattop (N[, mode, precision]) |
Flat-top tapering window |

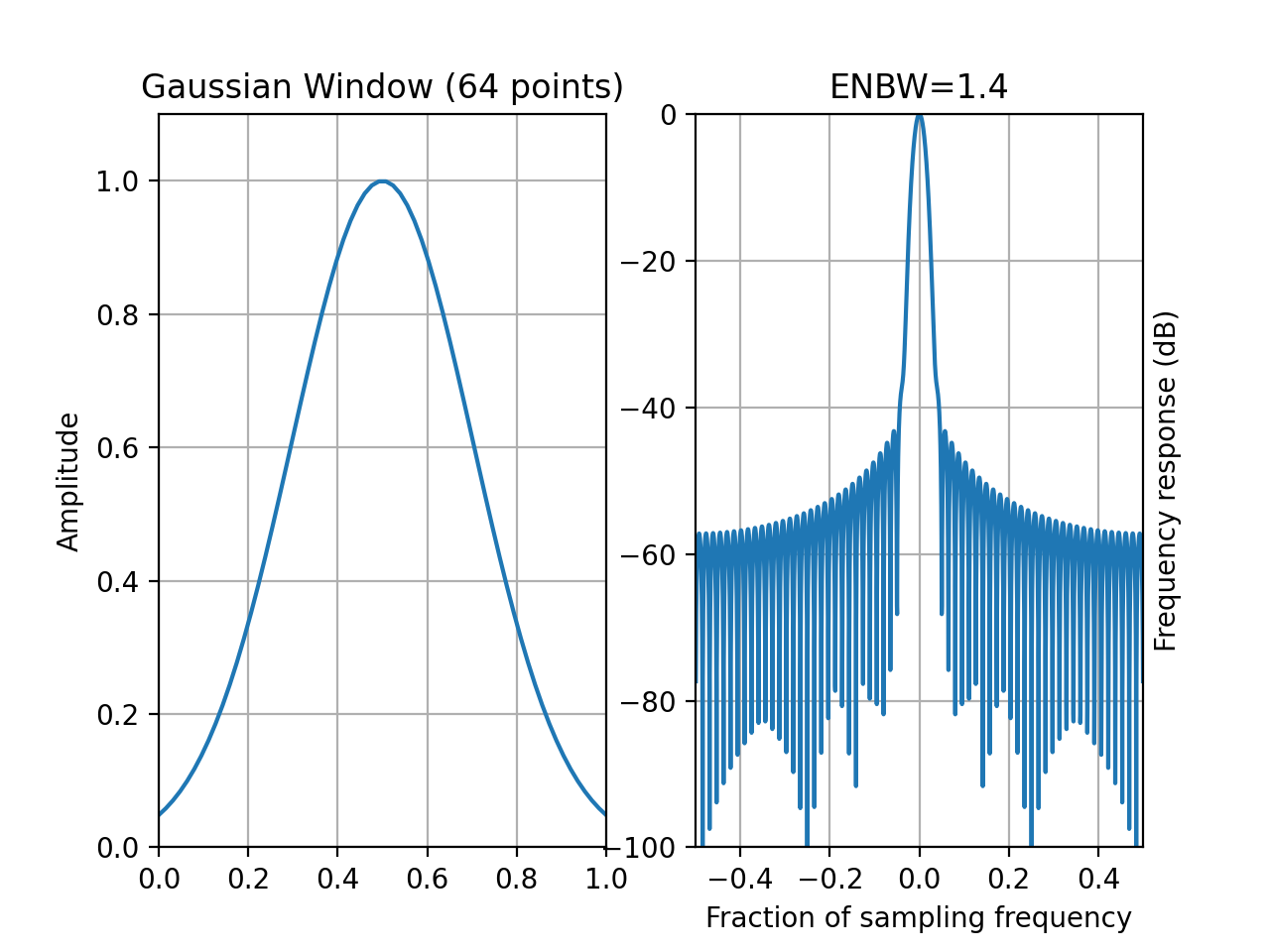

window_gaussian (N[, alpha]) |
Gaussian window |
window_hamming (N) |
Hamming window |
window_hann (N) |
Hann window (or Hanning). |
window_kaiser (N[, beta, method]) |
Kaiser window |
window_lanczos (N) |
Lanczos window also known as sinc window. |
window_nuttall (N) |
Nuttall tapering window |
window_parzen (N) |
Parsen tapering window (also known as de la Valle-Poussin) |
window_taylor (N[, nbar, sll]) |
Taylor tapering window |
window_tukey (N[, r]) |
Tukey tapering window (or cosine-tapered window) |
Code author: Thomas Cokelaer 2011
References: | See [Nuttall], [Marple], [Harris] |
---|
-
class
Window
(N, name=None, norm=True, **kargs)[source]¶ Window tapering object
This class provides utilities to manipulate tapering windows. Plotting functions allows to visualise the time and frequency response. It is also possible to retrieve relevant quantities such as the equivalent noise band width.
The following examples illustrates the usage. First, we create the window by providing a name and a size:

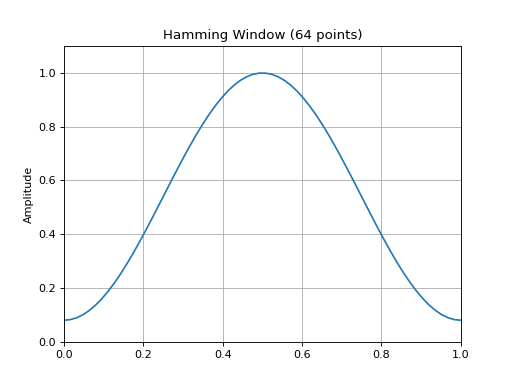

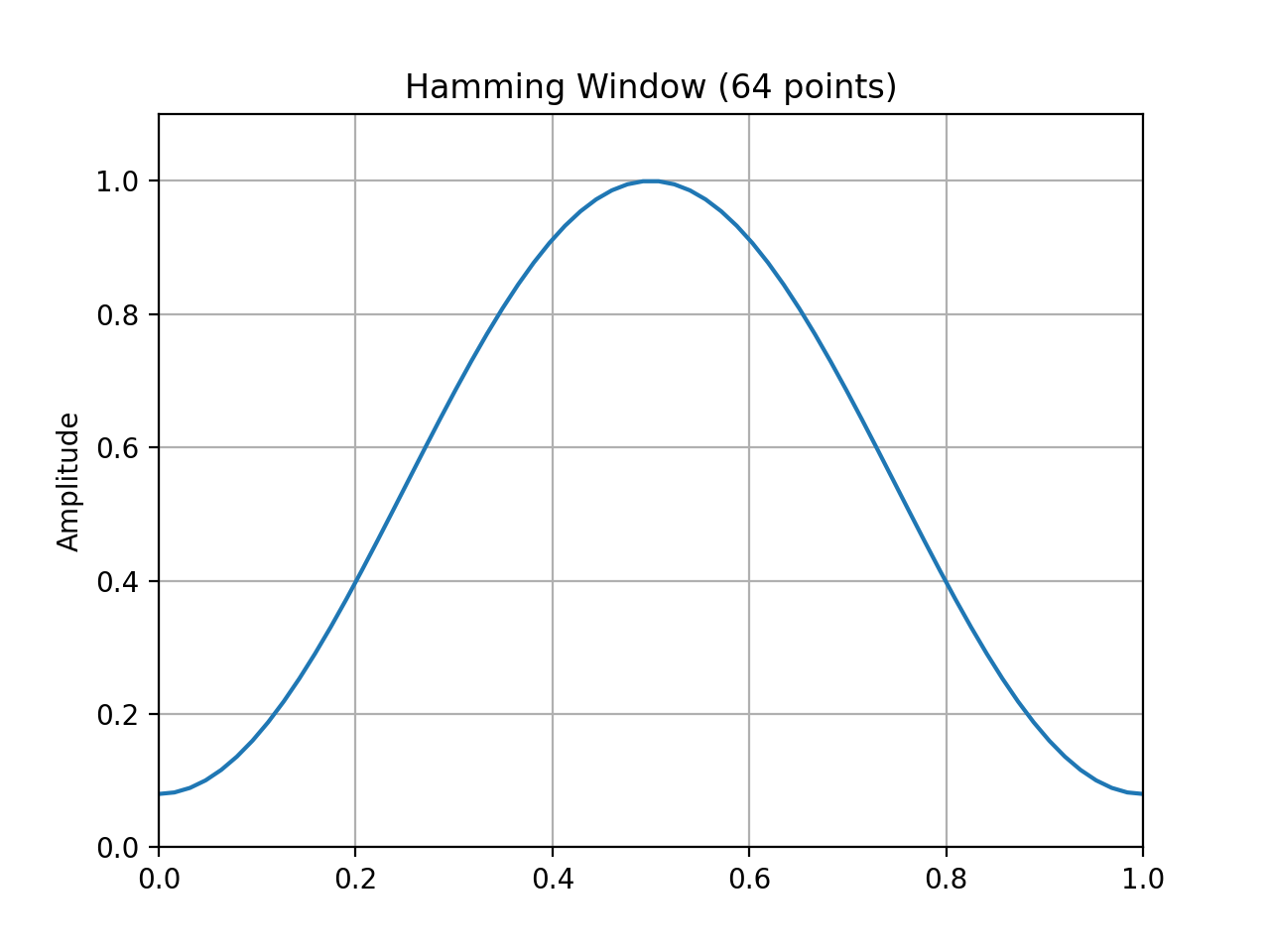

from spectrum import Window w = Window(64, 'hamming')
The window has been computed and the data is stored in:
w.data
This object contains plotting methods so that you can see the time or frequency response.
from spectrum.window import Window w = Window(64, 'hamming') w.plot_frequencies()
(Source code, png, hires.png, pdf)
Some windows may accept optional arguments. For instance,
window_blackman()
accepts an optional argument called as well asWindow
. Indeed, we use the factorycreate_window()
, which manage all the optional arguments. So you can write:w = Window(64, 'blackman', alpha=1)
See also
Constructor:
Create a tapering window object
Parameters: - N – the window length
- name – the type of window, e.g., ‘Hann’
- norm – normalise the window in frequency domain (for plotting)
- kargs – any of
create_window()
valid optional arguments.
Attributes:
- data: time series data
- frequencies: getter to the frequency series
- response: getter to the PSD
- enbw: getter to the Equivalent noise band width.
-
N
¶ Getter for the window length
-
compute_response
(**kargs)[source]¶ Compute the window data frequency response
Parameters: - norm – True by default. normalised the frequency data.
- NFFT (int) – total length of the final data sets( 2048 by default. if less than data length, then NFFT is set to the data length*2).
The response is stored in
response
.Note
Units are dB (20 log10) since we plot the frequency response)
-
data
¶ Getter for the window values (in time)
-
frequencies
¶ Getter for the frequency array
-
mean_square
¶ returns :math:` rac{w^2}{N}`
-
name
¶ Getter for the window name
-
norm
¶ Getter of the normalisation flag (True by default)
-
plot_frequencies
(mindB=None, maxdB=None, norm=True)[source]¶ Plot the window in the frequency domain
Parameters: - mindB – change the default lower y bound
- maxdB – change the default upper lower bound
- norm (bool) – if True, normalise the frequency response.

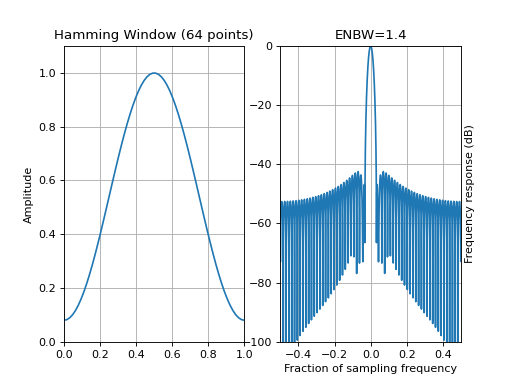

from spectrum.window import Window w = Window(64, name='hamming') w.plot_frequencies()
(Source code, png, hires.png, pdf)
-
plot_time_freq
(mindB=-100, maxdB=None, norm=True, yaxis_label_position='right')[source]¶ Plotting method to plot both time and frequency domain results.
See
plot_frequencies()
for the optional arguments.from spectrum.window import Window w = Window(64, name='hamming') w.plot_time_freq()
(Source code, png, hires.png, pdf)
-
plot_window
()[source]¶ Plot the window in the time domain
from spectrum.window import Window w = Window(64, name='hamming') w.plot_window()
(Source code, png, hires.png, pdf)
-
response
¶ Getter for the frequency response. See
compute_response()
-
create_window
(N, name=None, **kargs)[source]¶ Returns the N-point window given a valid name
Parameters: - N (int) – window size
- name (str) – window name (default is rectangular). Valid names
are stored in
window_names()
. - kargs –
optional arguments are:

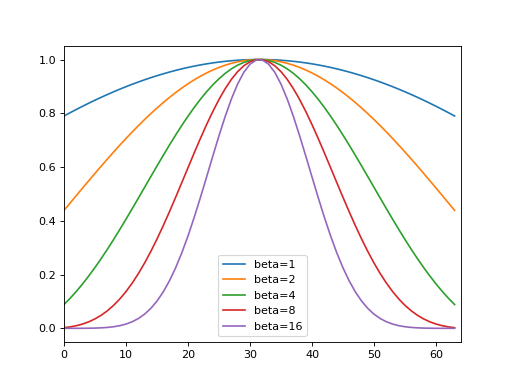

- beta: argument of the
window_kaiser()
function (default is 8.6) - attenuation: argument of the
window_chebwin()
function (default is 50dB) - alpha: argument of the
window_gaussian()
function (default is 2.5)window_blackman()

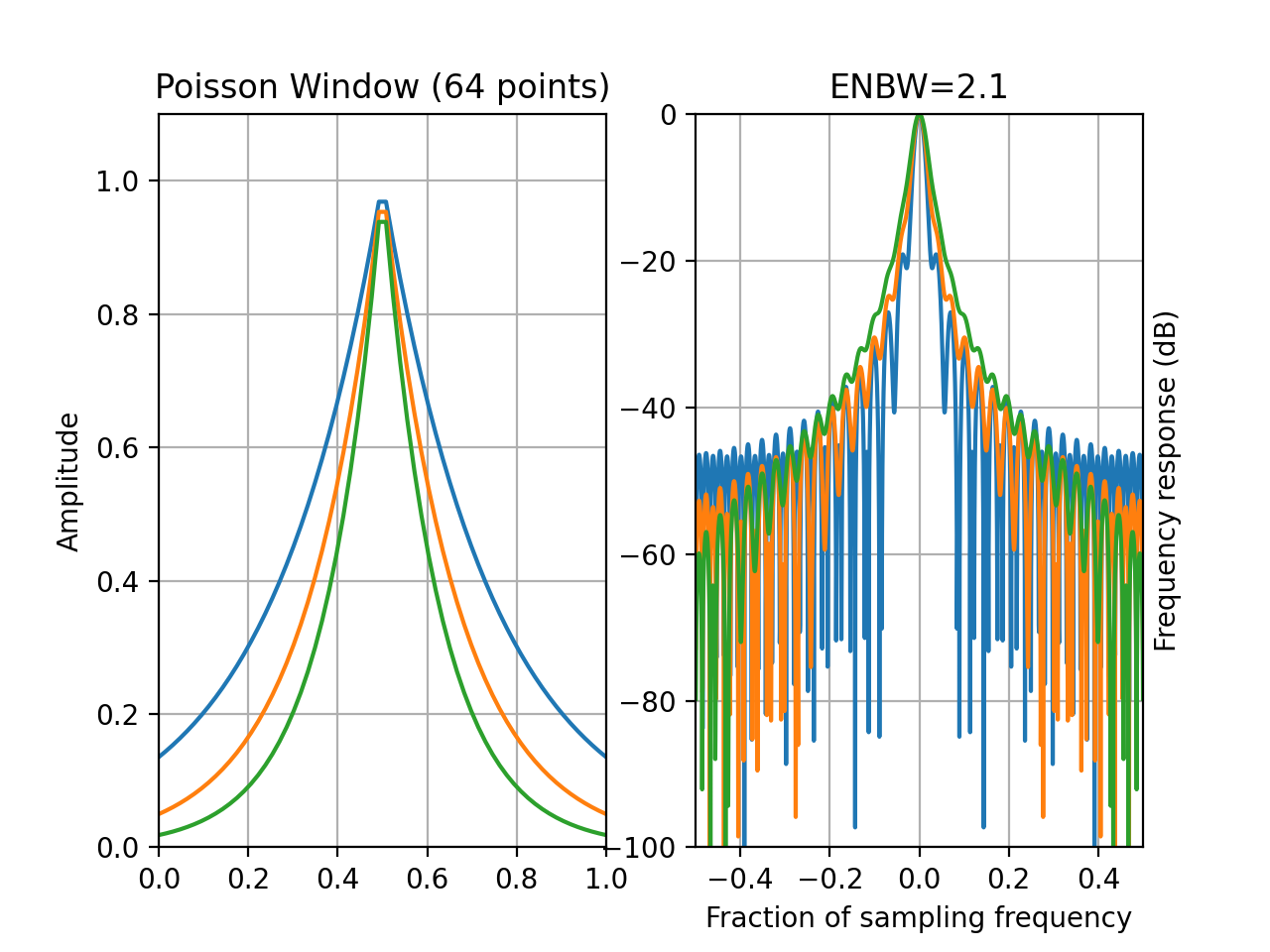

function (default is 0.16)window_poisson()
function (default is 2)window_cauchy()
function (default is 3)
- mode: argument
window_flattop()
function (default is symmetric, can be periodic) - r: argument of the
window_tukey()
function (default is 0.5).
- beta: argument of the
The following windows have been simply wrapped from existing librairies like NumPy:
- Rectangular:
window_rectangle()
, - Bartlett or Triangular: see
window_bartlett()
, - Hanning or Hann: see
window_hann()
, - Hamming: see
window_hamming()
, - Kaiser: see
window_kaiser()
, - chebwin: see
window_chebwin()
.
The following windows have been implemented from scratch:
- Blackman: See
window_blackman()
- Bartlett-Hann : see
window_bartlett_hann()
- cosine or sine: see
window_cosine()
- gaussian: see
window_gaussian()
- Bohman: see
window_bohman()
- Lanczos or sinc: see
window_lanczos()
- Blackman Harris: see
window_blackman_harris()
- Blackman Nuttall: see
window_blackman_nuttall()
- Nuttall: see
window_nuttall()
- Tukey: see
window_tukey()
- Parzen: see
window_parzen()
- Flattop: see
window_flattop()
- Riesz: see
window_riesz()
- Riemann: see
window_riemann()
- Poisson: see
window_poisson()
- Poisson-Hanning: see
window_poisson_hanning()
Todo
on request taylor, potter, Bessel, expo, rife-vincent, Kaiser-Bessel derived (KBD)

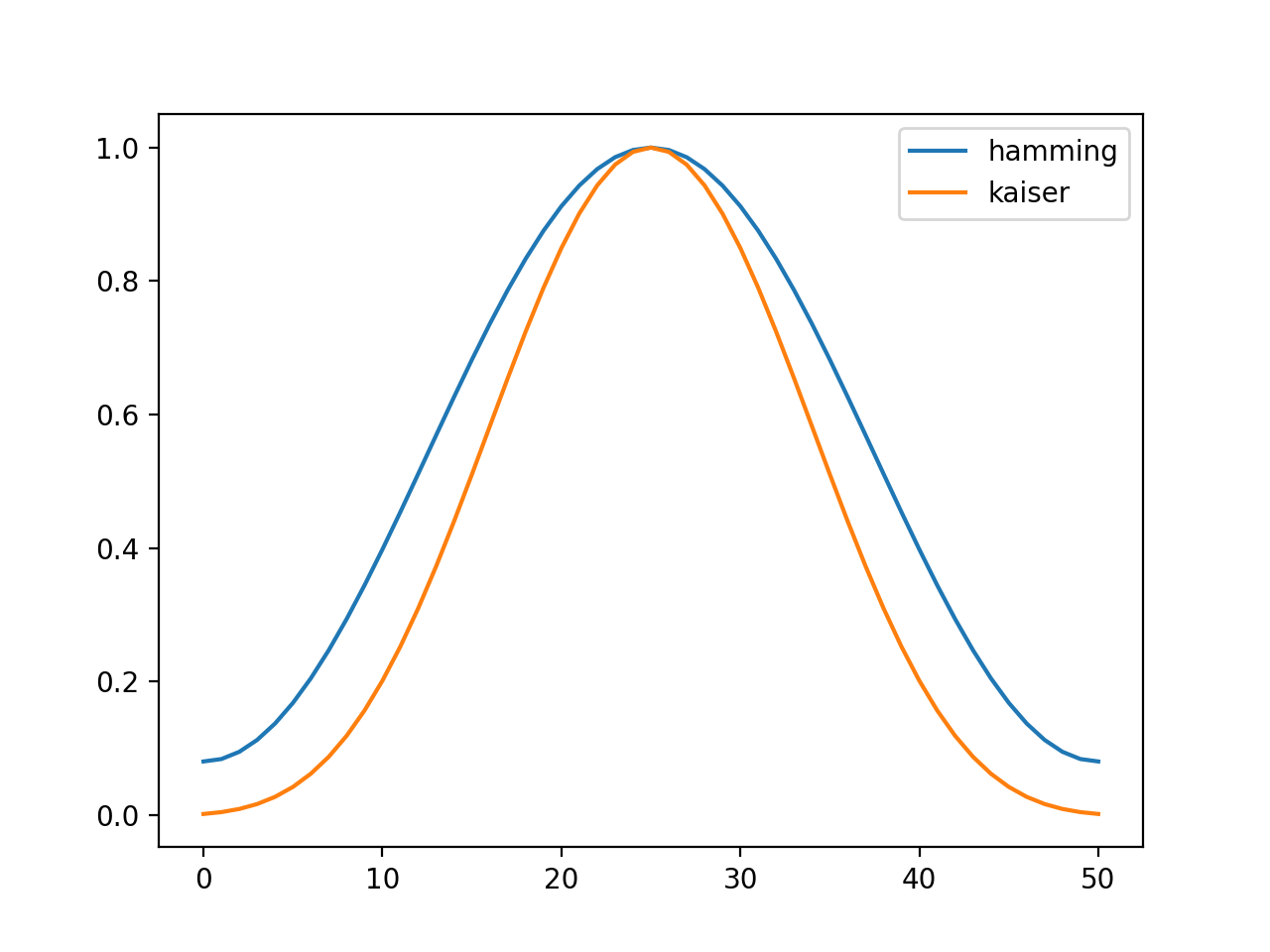

from pylab import plot, legend from spectrum import create_window data = create_window(51, 'hamming') plot(data, label='hamming') data = create_window(51, 'kaiser') plot(data, label='kaiser') legend()
(Source code, png, hires.png, pdf)
from pylab import plot, log10, linspace, fft, clip from spectrum import create_window, fftshift A = fft(create_window(51, 'hamming'), 2048) / 25.5 mag = abs(fftshift(A)) freq = linspace(-0.5,0.5,len(A)) response = 20 * log10(mag) mindB = -60 response = clip(response,mindB,100) plot(freq, response)
(Source code, png, hires.png, pdf)
See also
window_visu()
,Window()
,spectrum.dpss
-
enbw
(data)[source]¶ Computes the equivalent noise bandwidth
>>> from spectrum import create_window, enbw >>> w = create_window(64, 'rectangular') >>> enbw(w) 1.0
The following table contains the ENBW values for some of the implemented windows in this module (with N=16384). They have been double checked against litterature (Source: [Harris], [Marple]).
If not present, it means that it has not been checked.
name ENBW litterature rectangular triangle 1.3334 1.33 Hann 1.5001 1.5 Hamming 1.3629 1.36 blackman 1.7268 1.73 kaiser 1.7 blackmanharris,4 2.004 riesz 1.2000 1.2 riemann 1.32 1.3 parzen 1.917 1.92 tukey 0.25 1.102 1.1 bohman 1.7858 1.79 poisson 2 1.3130 1.3 hanningpoisson 0.5 1.609 1.61 cauchy 1.489 1.48 lanczos 1.3
-
window_bartlett
(N)[source]¶ Bartlett window (wrapping of numpy.bartlett) also known as Fejer
Parameters: N (int) – window length The Bartlett window is defined as

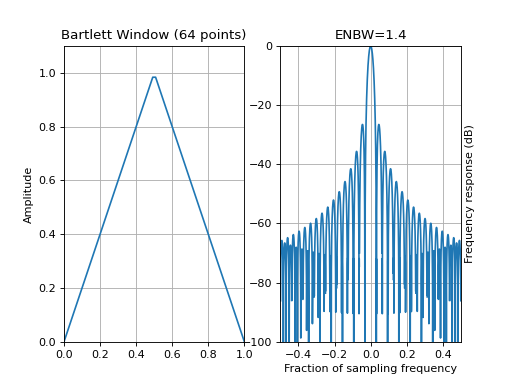

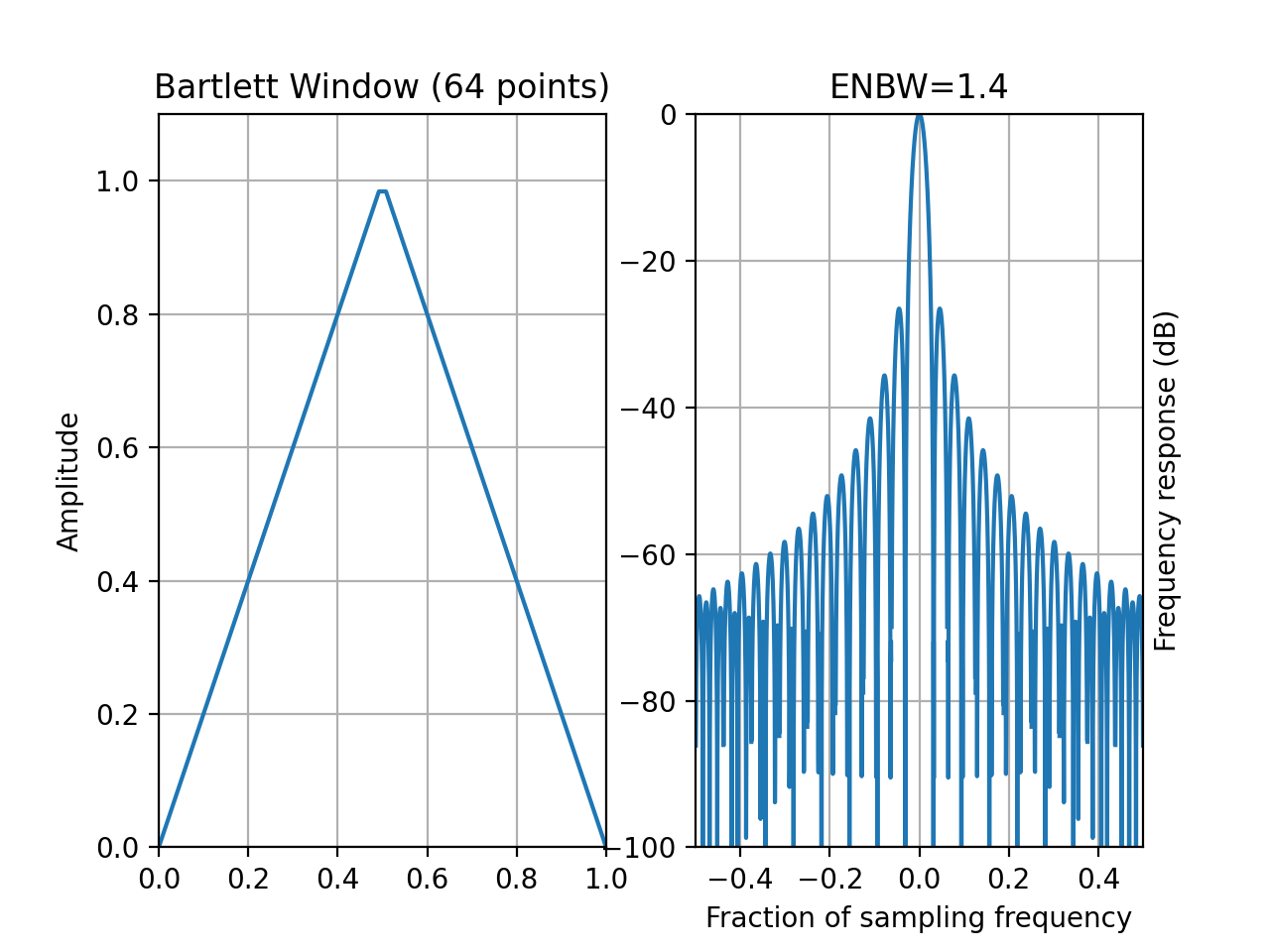

from spectrum import window_visu window_visu(64, 'bartlett')
(Source code, png, hires.png, pdf)
See also
numpy.bartlett,
create_window()
,Window
.
-
window_bartlett_hann
(N)[source]¶ Bartlett-Hann window
Parameters: N – window length with , and

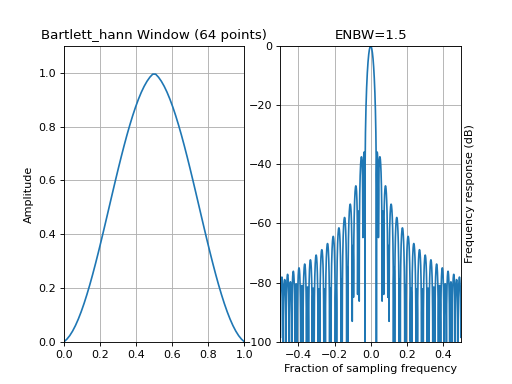

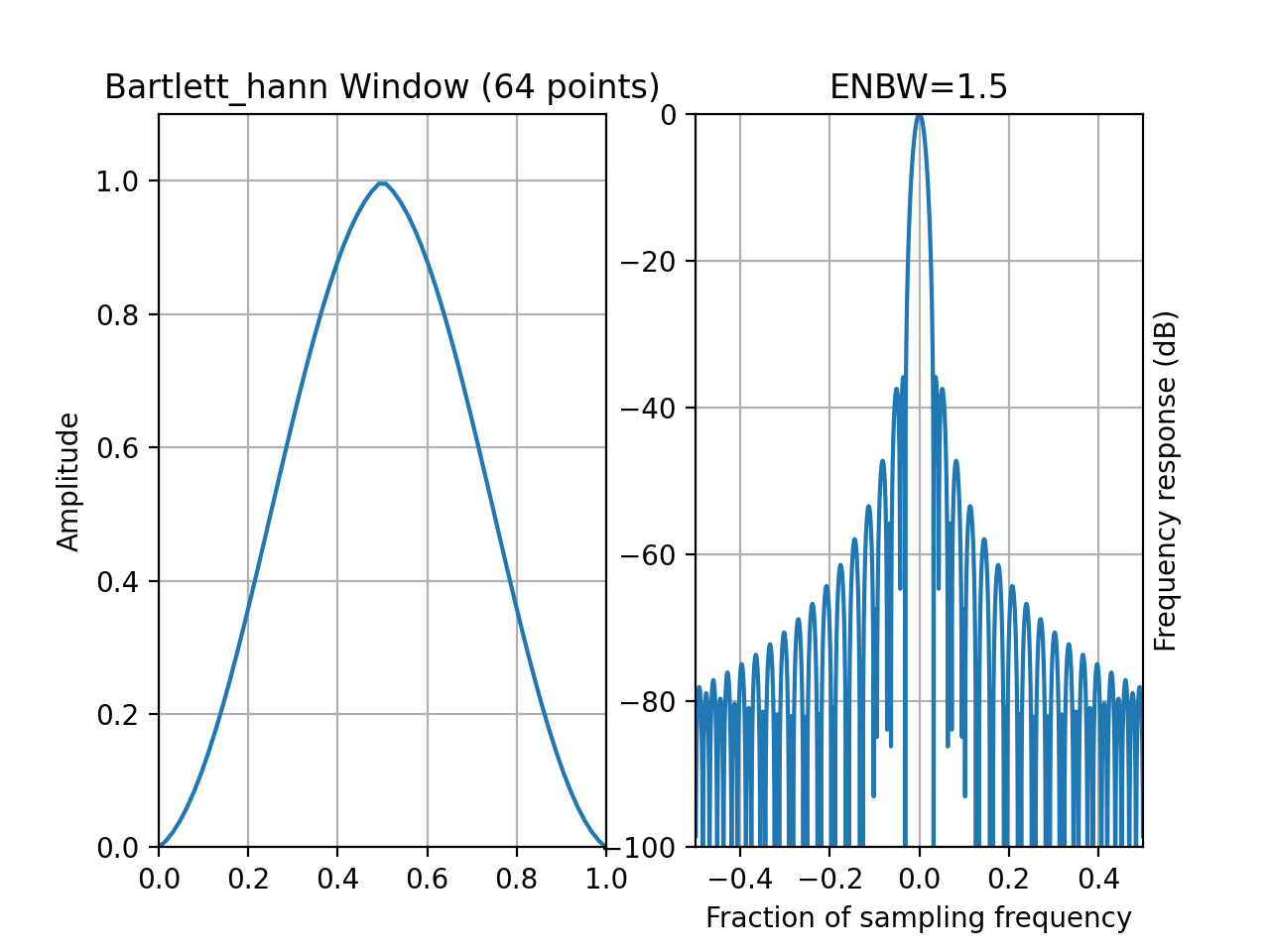

from spectrum import window_visu window_visu(64, 'bartlett_hann')
(Source code, png, hires.png, pdf)
See also
-
window_blackman
(N, alpha=0.16)[source]¶ Blackman window
Parameters: N – window length with
When , this is the unqualified Blackman window with and .

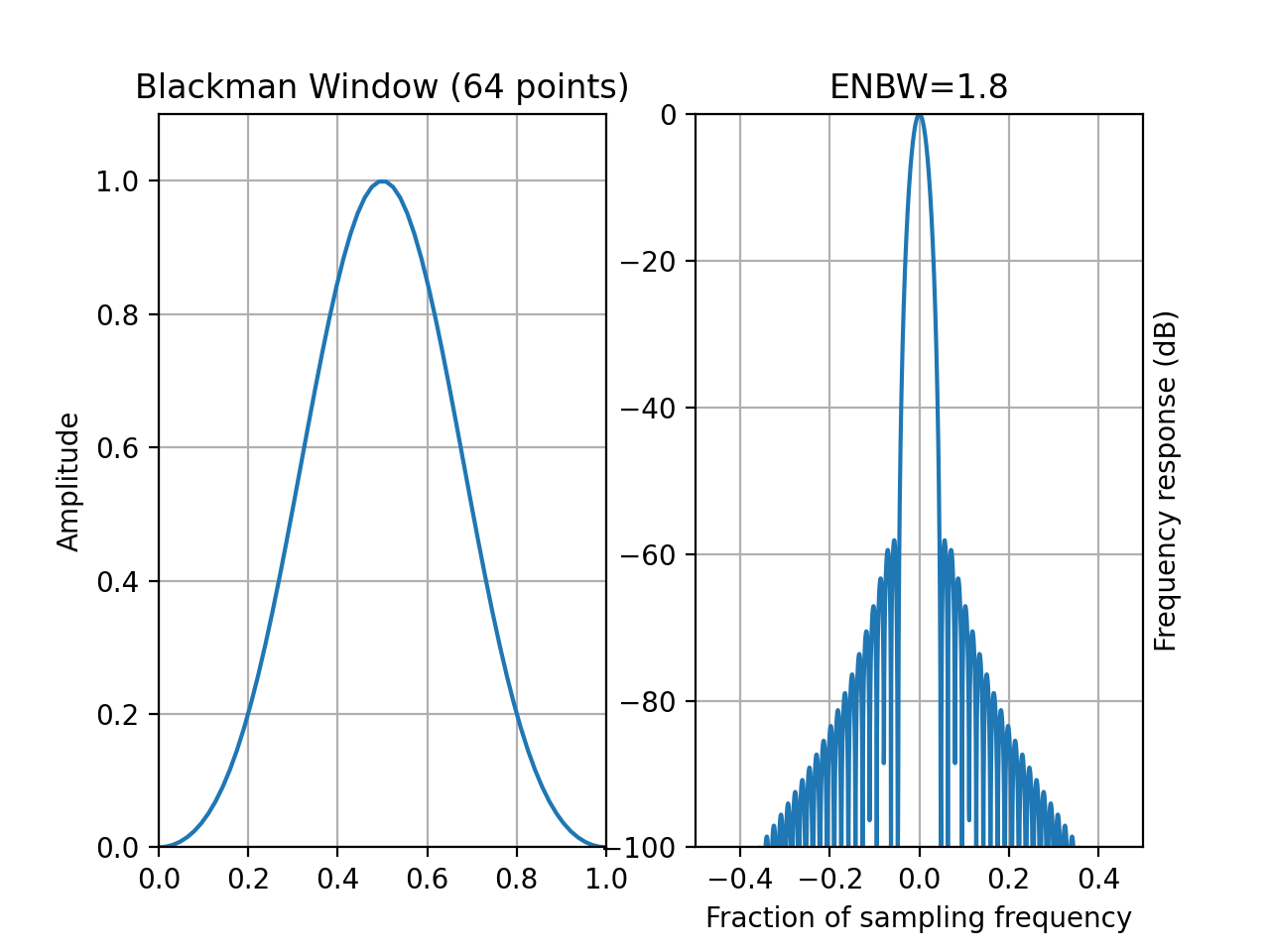

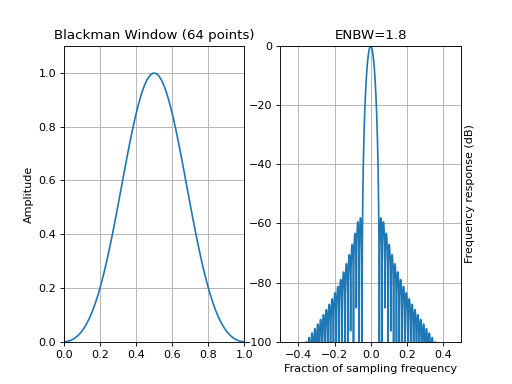

from spectrum import window_visu window_visu(64, 'blackman')
(Source code, png, hires.png, pdf)
Note
Although Numpy implements a blackman window for , this implementation is valid for any .
See also
numpy.blackman,
create_window()
,Window
-
window_blackman_harris
(N)[source]¶ Blackman Harris window

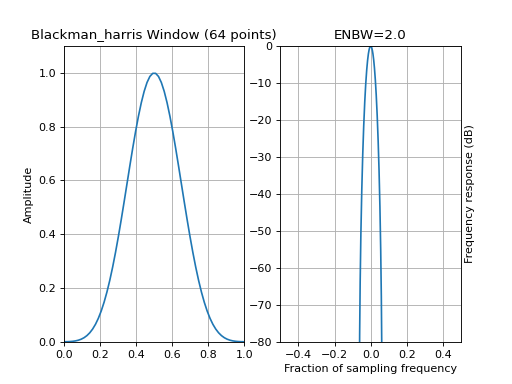

Parameters: N – window length coeff value 0.35875 0.48829 0.14128 0.01168 from spectrum import window_visu window_visu(64, 'blackman_harris', mindB=-80)
(Source code, png, hires.png, pdf)
See also
See also
-
window_blackman_nuttall
(N)[source]¶ Blackman Nuttall window
returns a minimum, 4-term Blackman-Harris window. The window is minimum in the sense that its maximum sidelobes are minimized. The coefficients for this window differ from the Blackman-Harris window coefficients and produce slightly lower sidelobes.
Parameters: N – window length with , , and

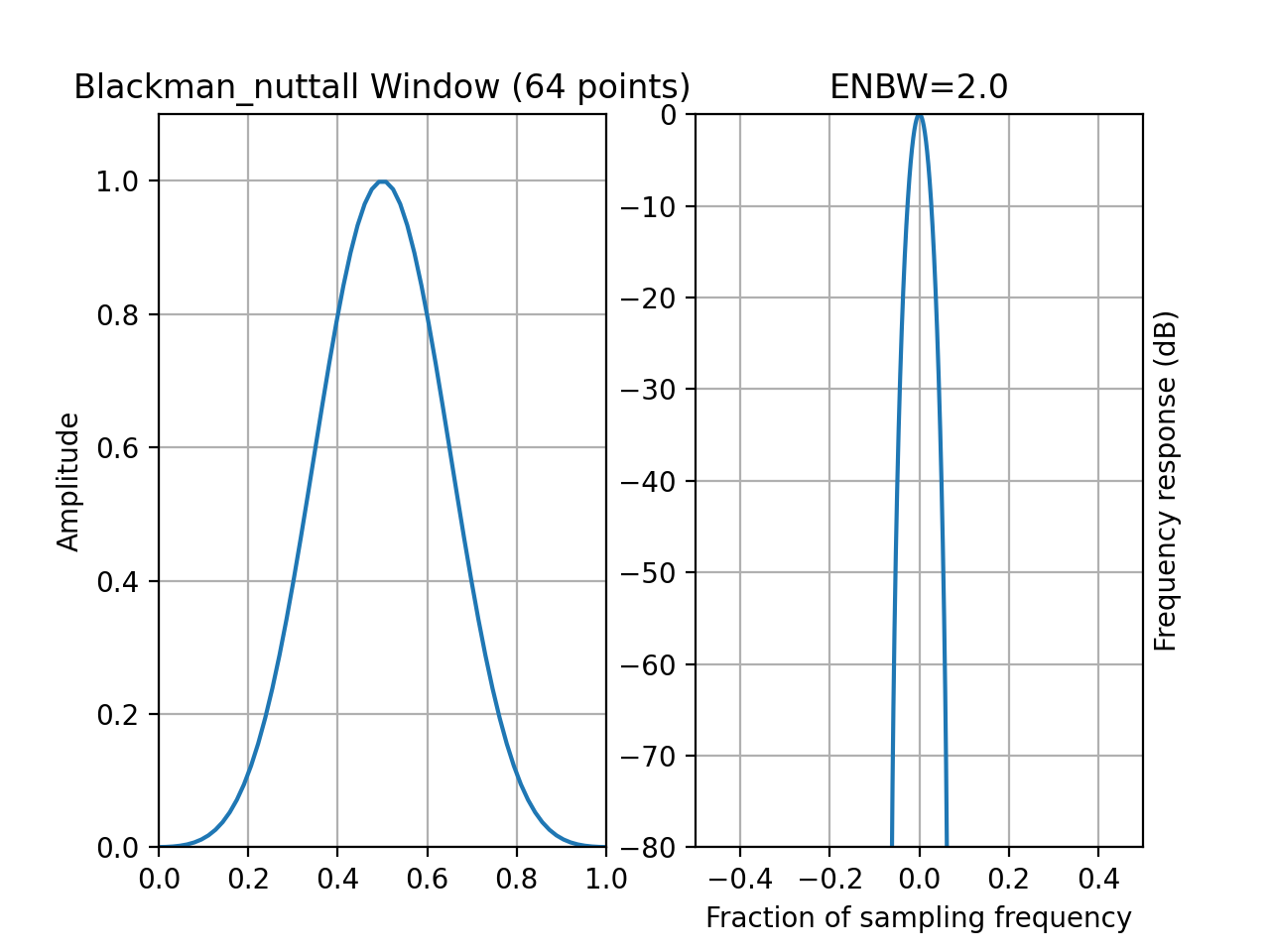

from spectrum import window_visu window_visu(64, 'blackman_nuttall', mindB=-80)
(Source code, png, hires.png, pdf)
See also
See also
-
window_bohman
(N)[source]¶ Bohman tapering window
Parameters: N – window length where x is a length N vector of linearly spaced values between -1 and 1.

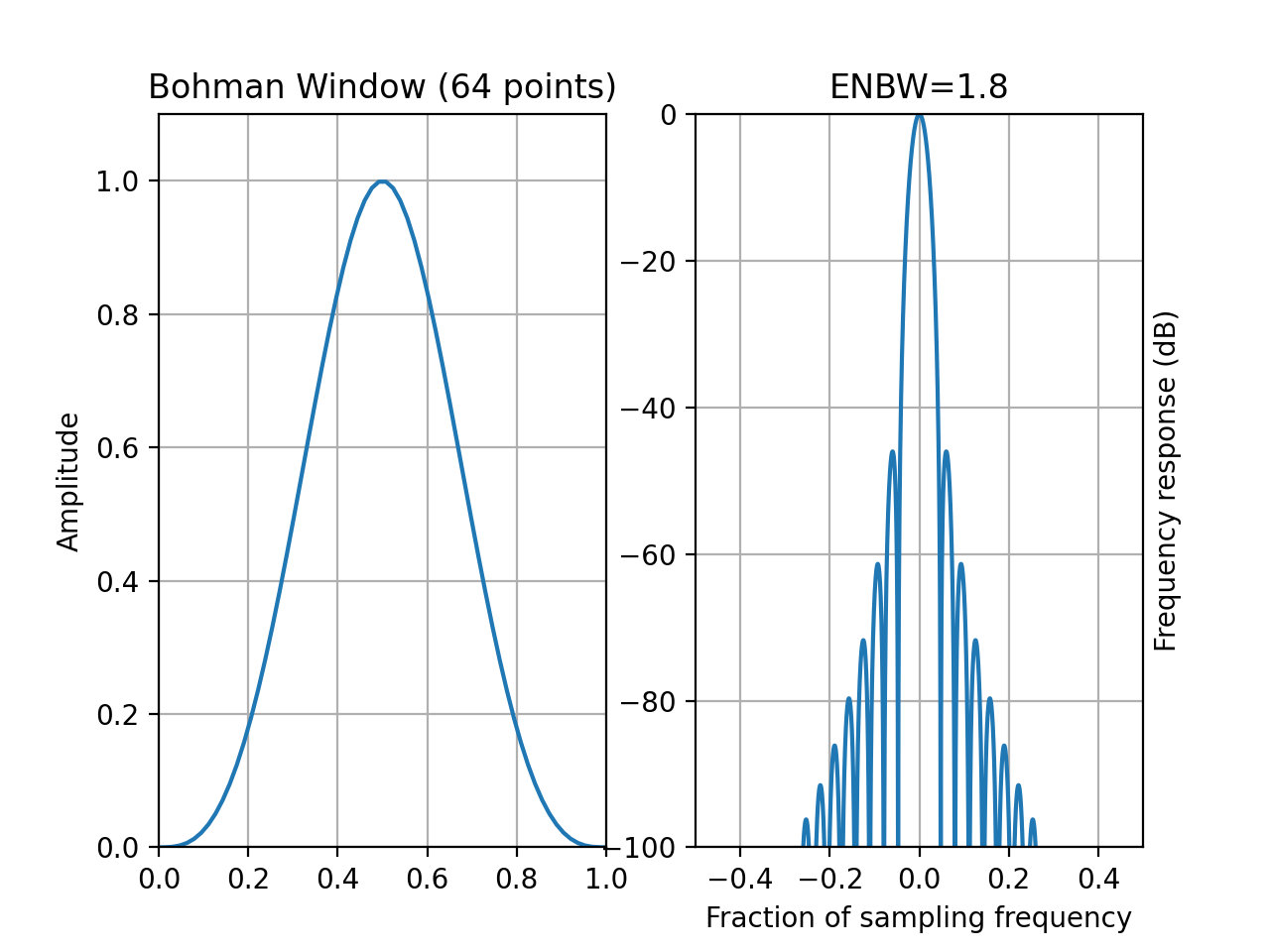

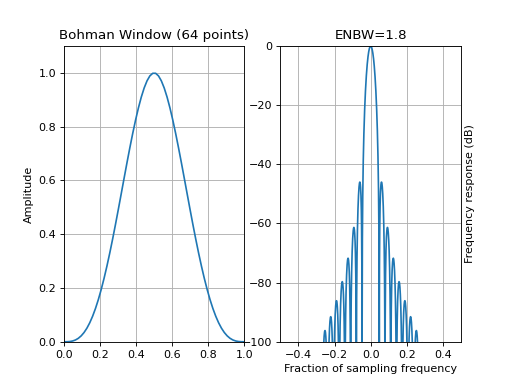

from spectrum import window_visu window_visu(64, 'bohman')
(Source code, png, hires.png, pdf)
See also
-
window_cauchy
(N, alpha=3)[source]¶ Cauchy tapering window

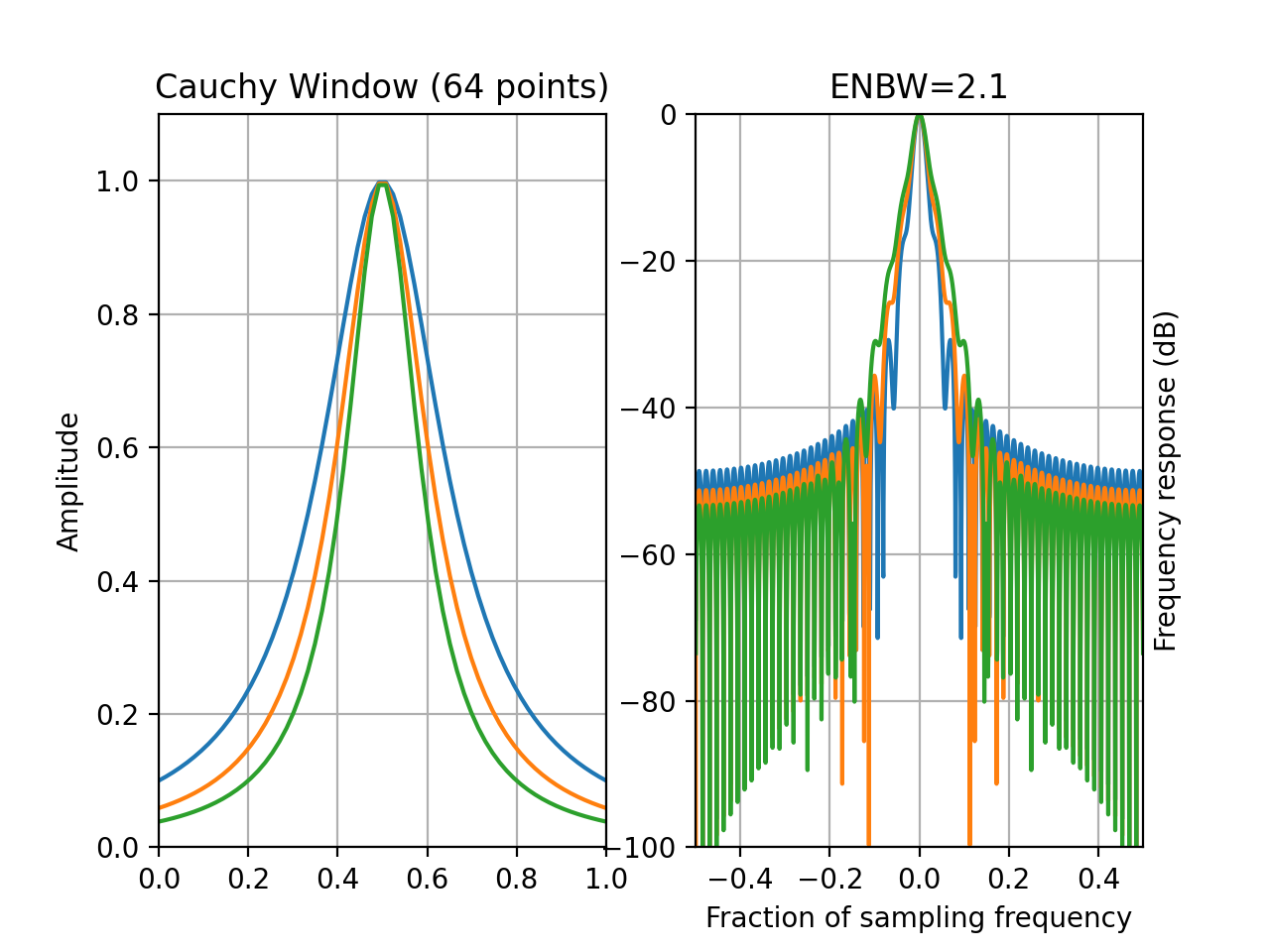

Parameters: from spectrum import window_visu window_visu(64, 'cauchy', alpha=3) window_visu(64, 'cauchy', alpha=4) window_visu(64, 'cauchy', alpha=5)
(Source code, png, hires.png, pdf)
See also
-
window_chebwin
(N, attenuation=50)[source]¶ Cheb window

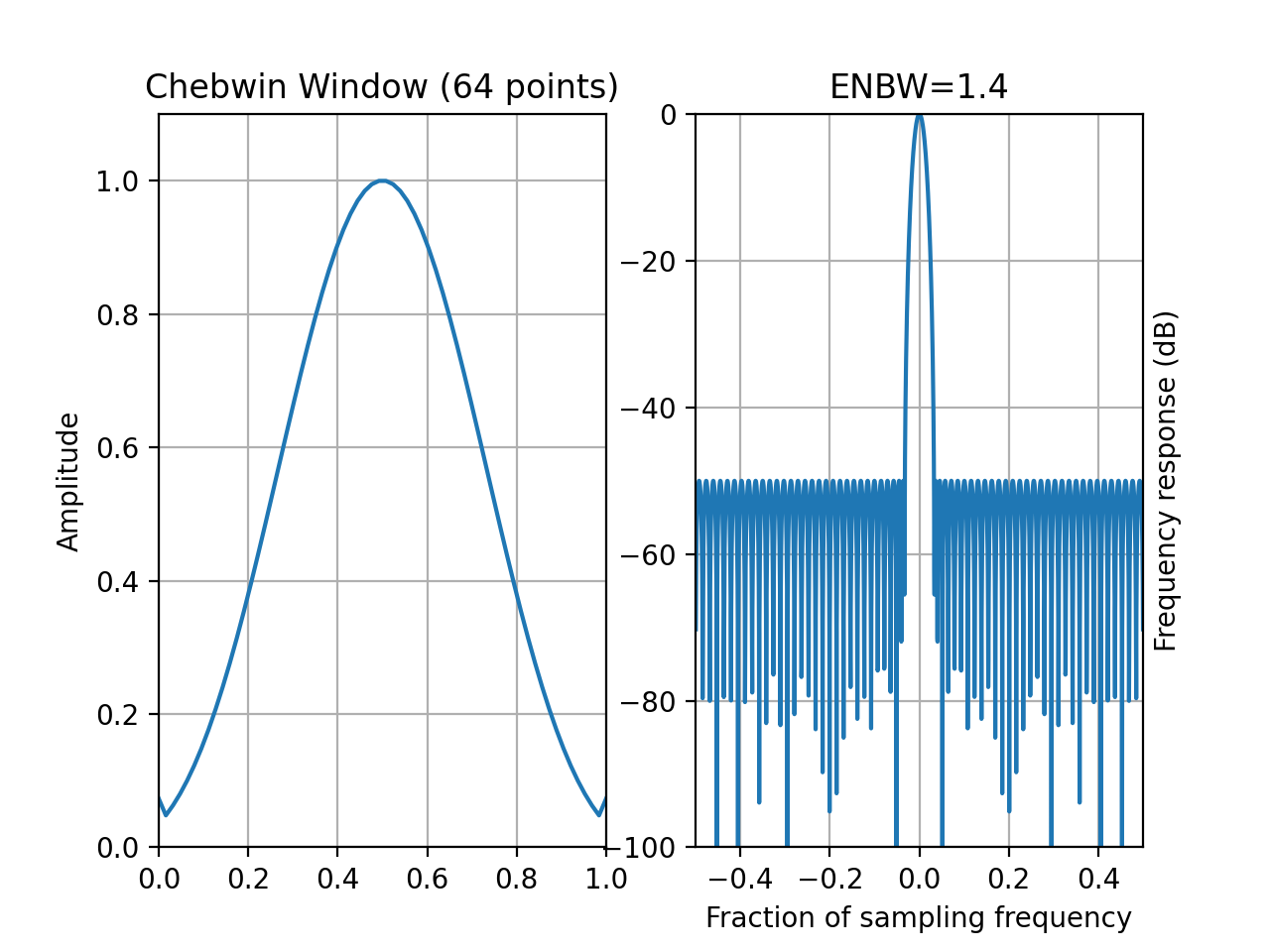

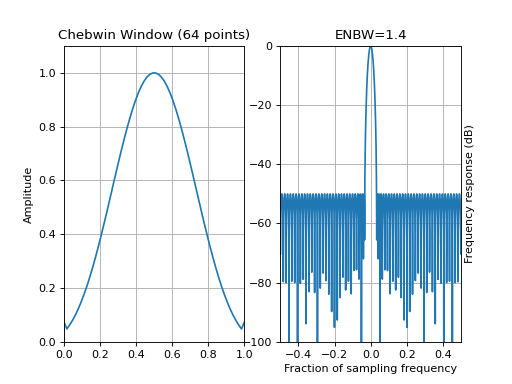

Parameters: N – window length from spectrum import window_visu window_visu(64, 'chebwin', attenuation=50)
(Source code, png, hires.png, pdf)
See also
scipy.signal.chebwin,
create_window()
,Window
-
window_cosine
(N)[source]¶ Cosine tapering window also known as sine window.
Parameters: N – window length from spectrum import window_visu window_visu(64, 'cosine')
(Source code, png, hires.png, pdf)
See also
-
window_flattop
(N, mode='symmetric', precision=None)[source]¶ Flat-top tapering window
Returns symmetric or periodic flat top window.
Parameters: - N – window length
- mode – way the data are normalised. If mode is symmetric, then divide n by N-1. IF mode is periodic, divide by N, to be consistent with octave code.
When using windows for filter design, the symmetric mode should be used (default). When using windows for spectral analysis, the periodic mode should be used. The mathematical form of the flat-top window in the symmetric case is:
coeff value a0 0.21557895 a1 0.41663158 a2 0.277263158 a3 0.083578947 a4 0.006947368 from spectrum import window_visu window_visu(64, 'bohman')
(Source code, png, hires.png, pdf)
See also
-
window_gaussian
(N, alpha=2.5)[source]¶ Gaussian window
Parameters: N – window length with .
Note
N-1 is used to be in agreement with octave convention. The ENBW of 1.4 is also in agreement with [Harris]

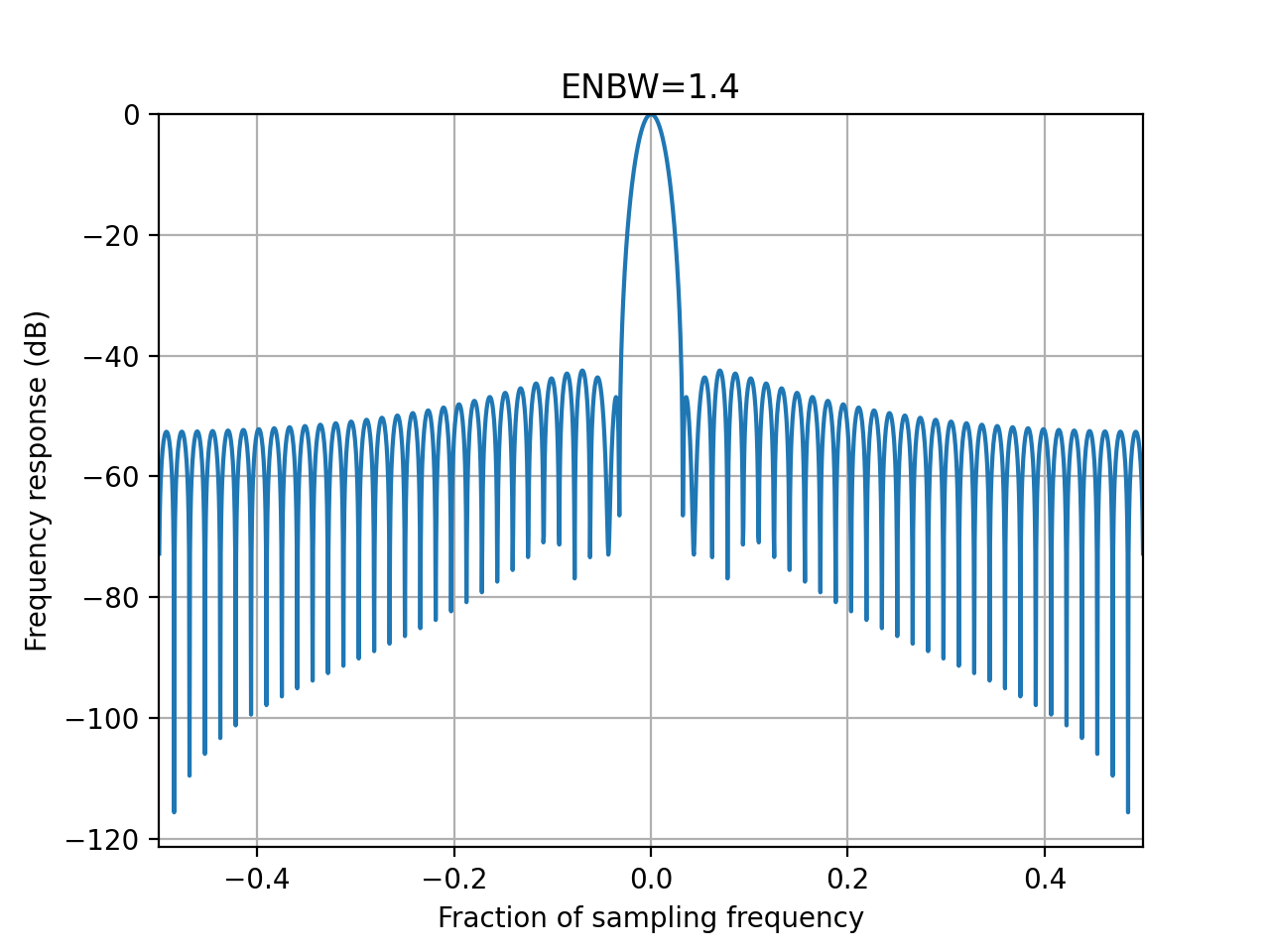

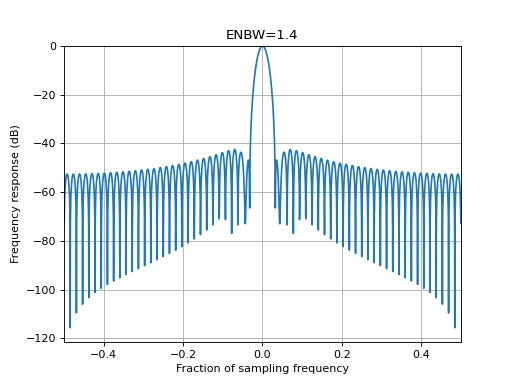

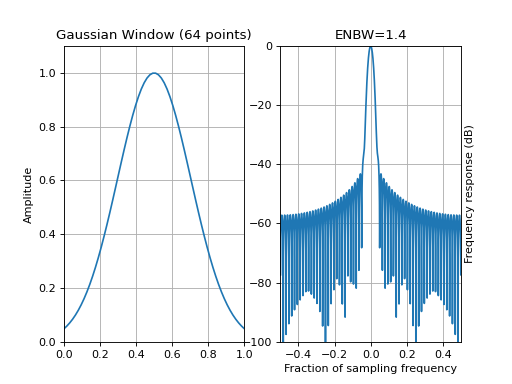

from spectrum import window_visu window_visu(64, 'gaussian', alpha=2.5)
(Source code, png, hires.png, pdf)
See also
scipy.signal.gaussian,
create_window()
-
window_hamming
(N)[source]¶ Hamming window
Parameters: N – window length The Hamming window is defined as

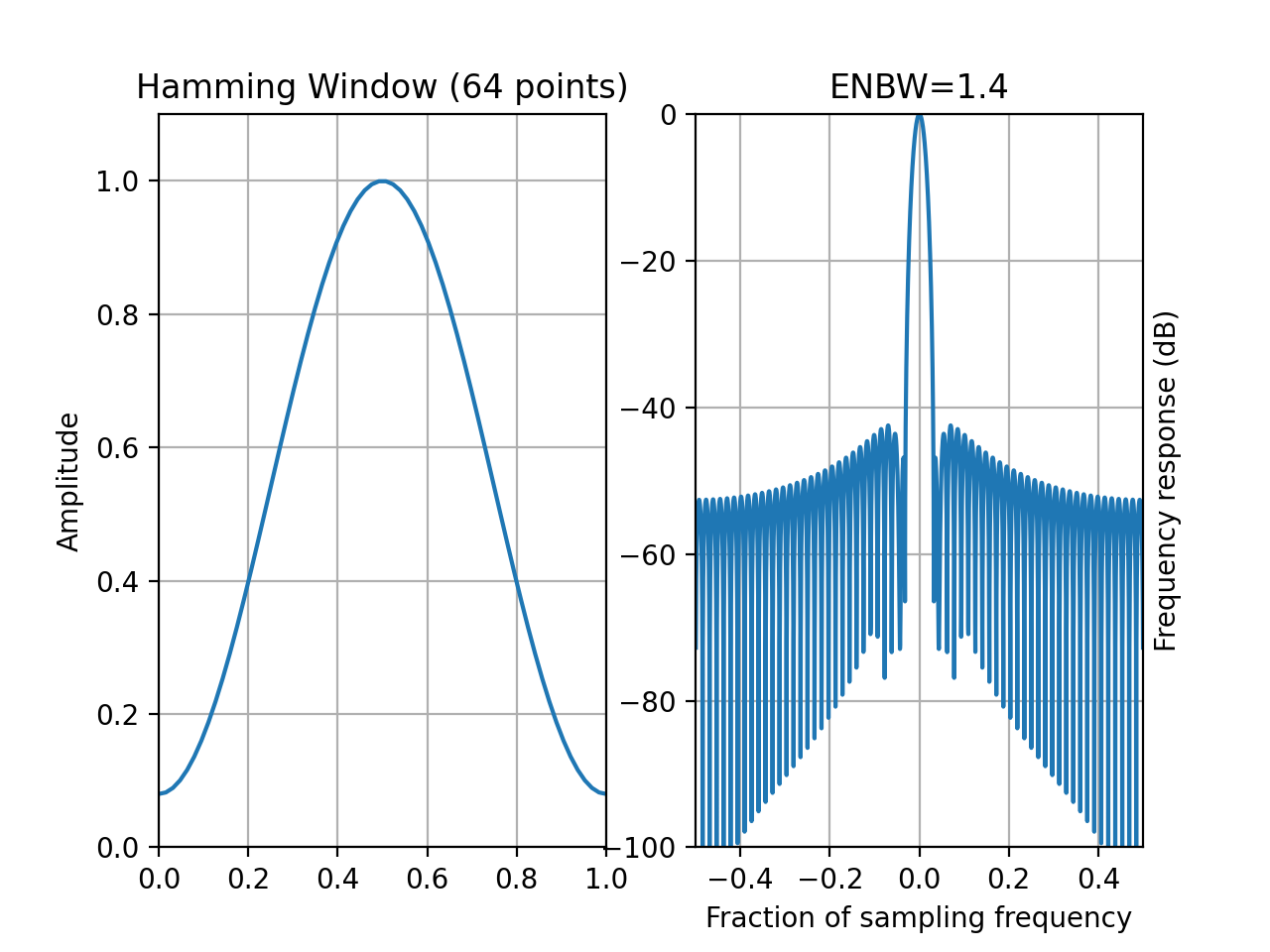

from spectrum import window_visu window_visu(64, 'hamming')
(Source code, png, hires.png, pdf)
See also
numpy.hamming,
create_window()
,Window
.
-
window_hann
(N)[source]¶ Hann window (or Hanning). (wrapping of numpy.bartlett)
Parameters: N (int) – window length The Hanning window is also known as the Cosine Bell. Usually, it is called Hann window, to avoid confusion with the Hamming window.
from spectrum import window_visu window_visu(64, 'hanning')
(Source code, png, hires.png, pdf)
See also
numpy.hanning,
create_window()
,Window
.
-
window_kaiser
(N, beta=8.6, method='numpy')[source]¶ Kaiser window
Parameters: - N – window length
- beta – kaiser parameter (default is 8.6)
To obtain a Kaiser window that designs an FIR filter with sidelobe attenuation of dB, use the following where .
where
- is the zeroth order Modified Bessel function of the first kind.
- is a real number that determines the shape of the window. It determines the trade-off between main-lobe width and side lobe level.
- the length of the sequence is N=M+1.
The Kaiser window can approximate many other windows by varying the parameter:
beta Window shape 0 Rectangular 5 Similar to a Hamming 6 Similar to a Hanning 8.6 Similar to a Blackman from pylab import plot, legend, xlim from spectrum import window_kaiser N = 64 for beta in [1,2,4,8,16]: plot(window_kaiser(N, beta), label='beta='+str(beta)) xlim(0,N) legend()
(Source code, png, hires.png, pdf)

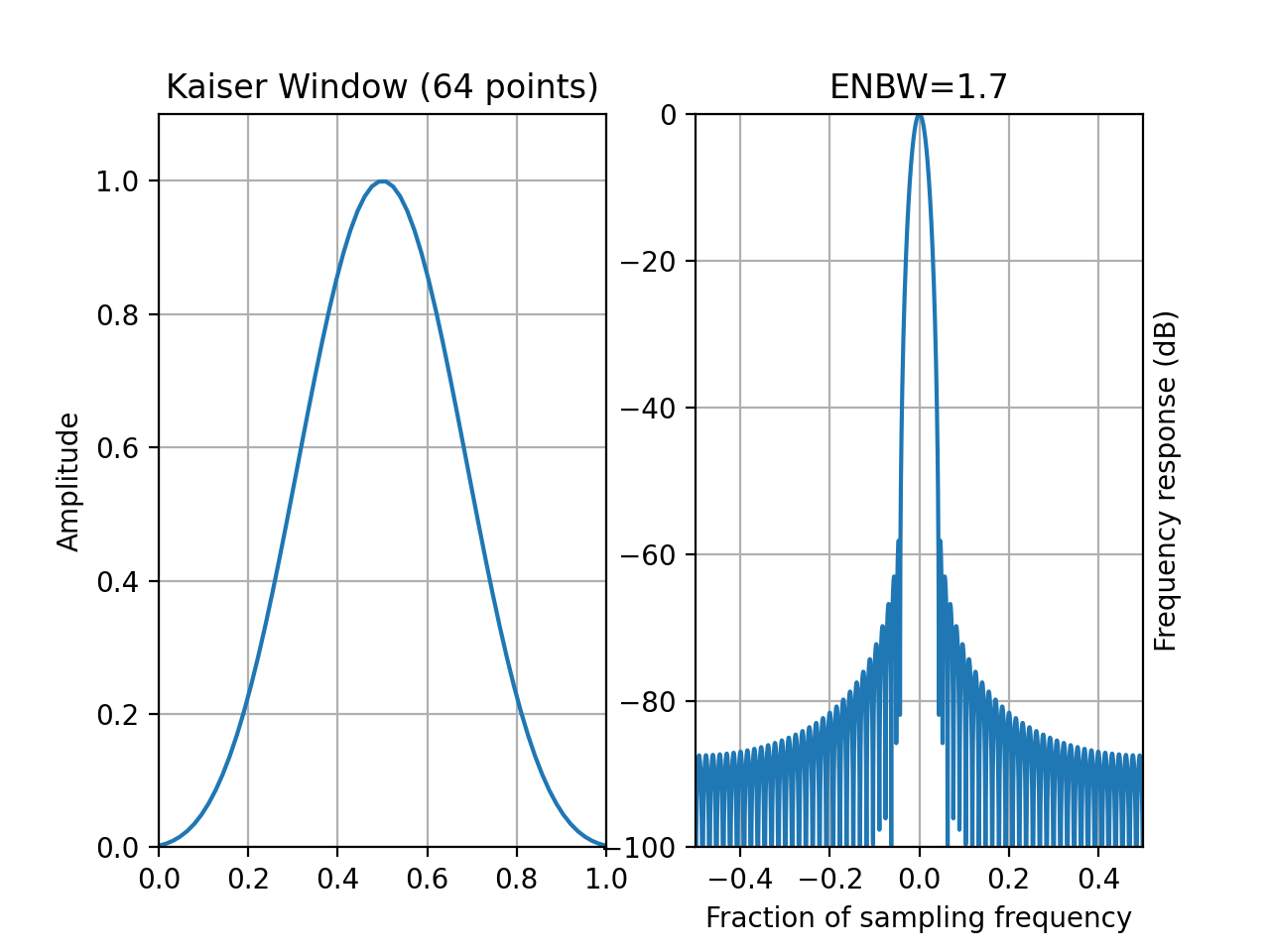

from spectrum import window_visu window_visu(64, 'kaiser', beta=8.)
(Source code, png, hires.png, pdf)
See also
numpy.kaiser,
spectrum.window.create_window()
-
window_lanczos
(N)[source]¶ Lanczos window also known as sinc window.

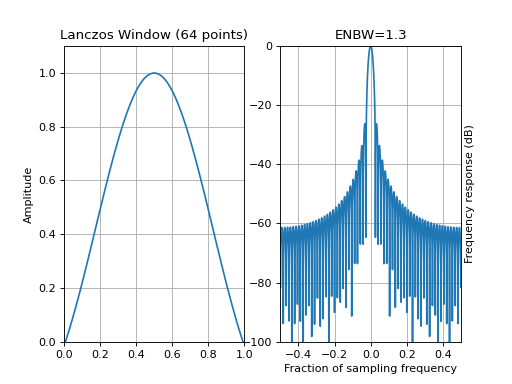

Parameters: N – window length from spectrum import window_visu window_visu(64, 'lanczos')
(Source code, png, hires.png, pdf)
See also
-
window_nuttall
(N)[source]¶ Nuttall tapering window
Parameters: N – window length with , , and

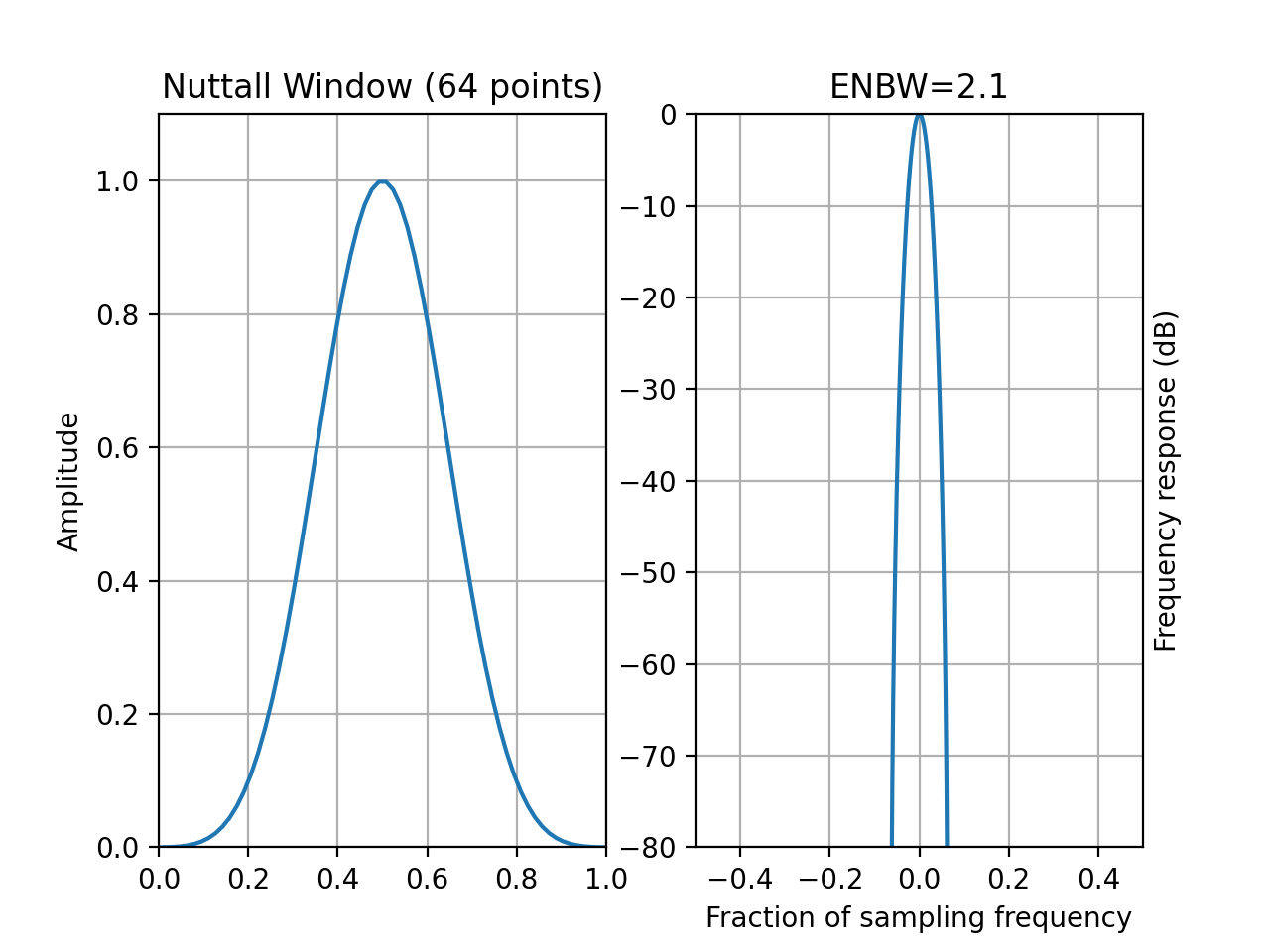

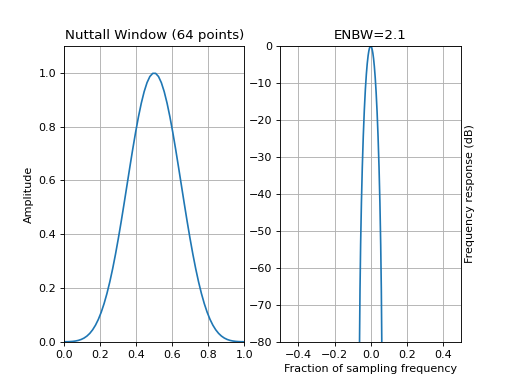

from spectrum import window_visu window_visu(64, 'nuttall', mindB=-80)
(Source code, png, hires.png, pdf)
See also
-
window_parzen
(N)[source]¶ Parsen tapering window (also known as de la Valle-Poussin)
Parameters: N – window length Parzen windows are piecewise cubic approximations of Gaussian windows. Parzen window sidelobes fall off as .
if :
if

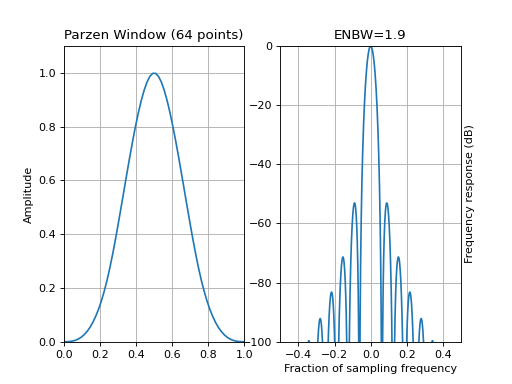

from spectrum import window_visu window_visu(64, 'parzen')
(Source code, png, hires.png, pdf)
See also
-
window_poisson
(N, alpha=2)[source]¶ Poisson tapering window
Parameters: N (int) – window length with .
from spectrum import window_visu window_visu(64, 'poisson') window_visu(64, 'poisson', alpha=3) window_visu(64, 'poisson', alpha=4)
(Source code, png, hires.png, pdf)
See also
-
window_poisson_hanning
(N, alpha=2)[source]¶ Hann-Poisson tapering window
This window is constructed as the product of the Hanning and Poisson windows. The parameter alpha is the Poisson parameter.

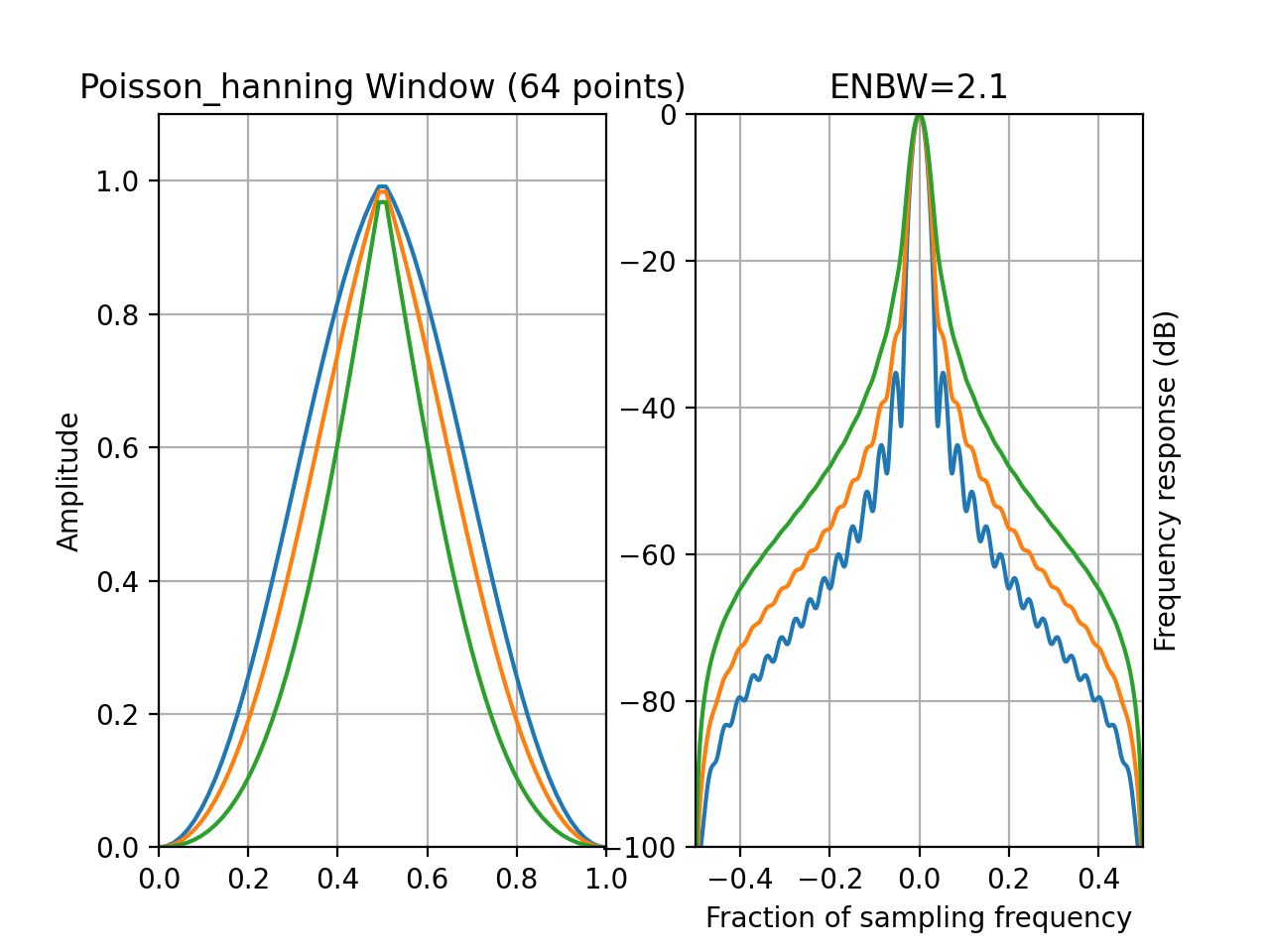

Parameters: from spectrum import window_visu window_visu(64, 'poisson_hanning', alpha=0.5) window_visu(64, 'poisson_hanning', alpha=1) window_visu(64, 'poisson_hanning')
(Source code, png, hires.png, pdf)
See also
-
window_rectangle
(N)[source]¶ Kaiser window

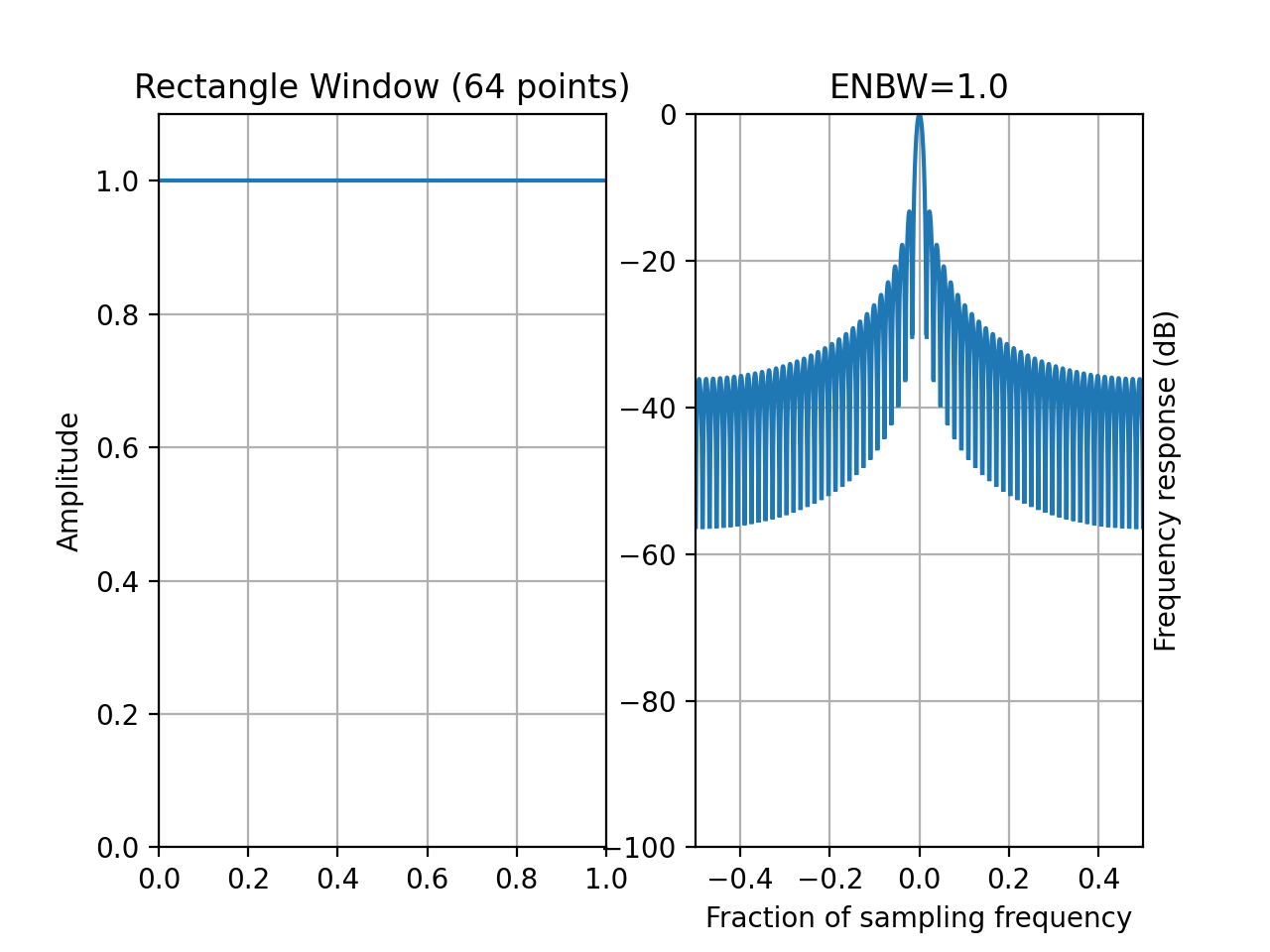

Parameters: N – window length from spectrum import window_visu window_visu(64, 'rectangle')
(Source code, png, hires.png, pdf)
-
window_riemann
(N)[source]¶ Riemann tapering window
Parameters: N (int) – window length with .
from spectrum import window_visu window_visu(64, 'riesz')
(Source code, png, hires.png, pdf)
See also
-
window_riesz
(N)[source]¶ Riesz tapering window
Parameters: N – window length with .

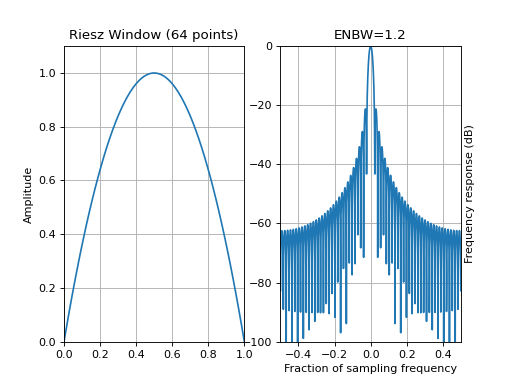

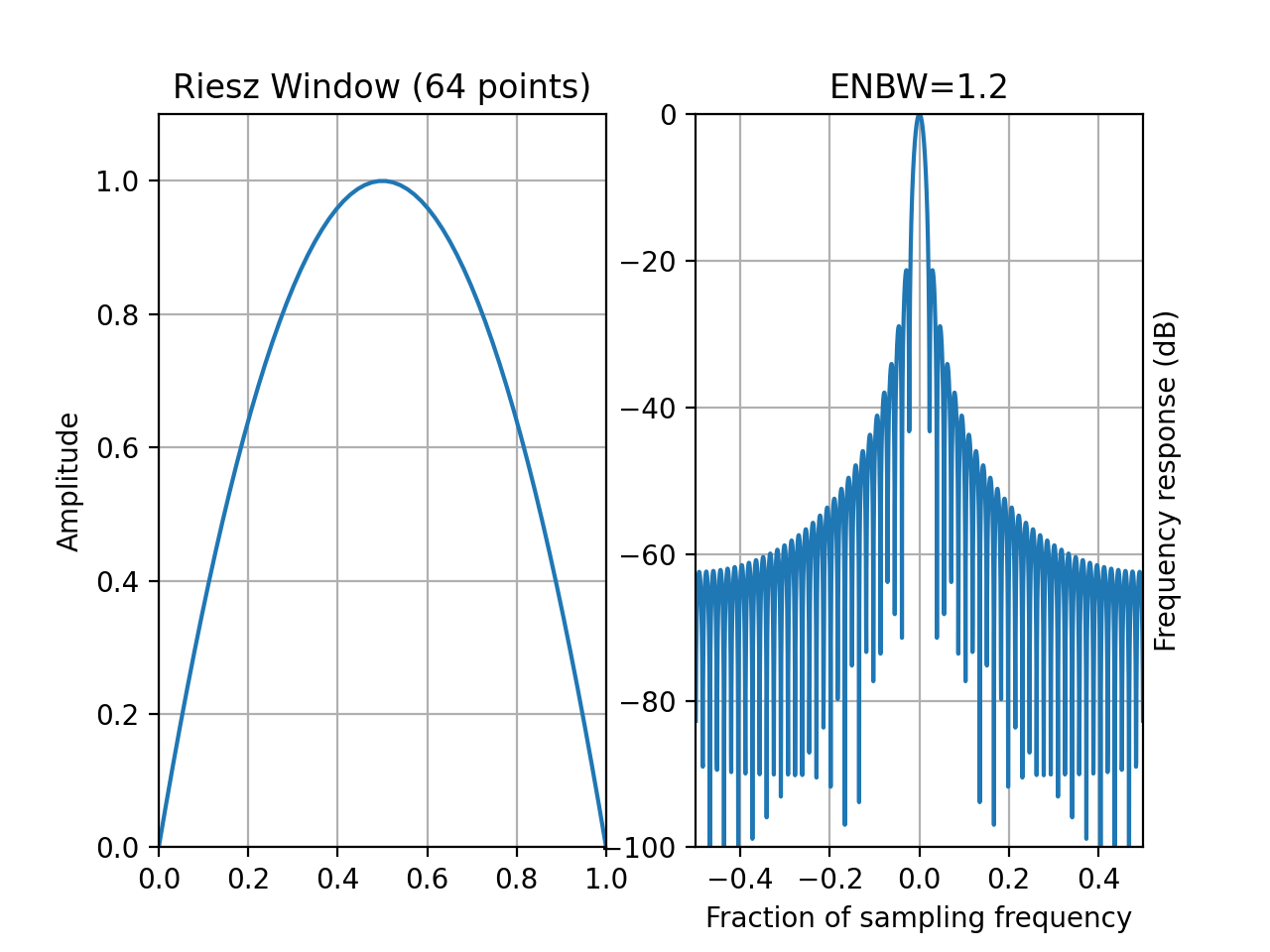

from spectrum import window_visu window_visu(64, 'riesz')
(Source code, png, hires.png, pdf)
See also
-
window_taylor
(N, nbar=4, sll=-30)[source]¶ Taylor tapering window
Taylor windows allows you to make tradeoffs between the mainlobe width and sidelobe level (sll).
Implemented as described by Carrara, Goodman, and Majewski in ‘Spotlight Synthetic Aperture Radar: Signal Processing Algorithms’ Pages 512-513
Parameters: The default values gives equal height sidelobes (nbar) and maximum sidelobe level (sll).
Warning
not implemented
See also
-
window_tukey
(N, r=0.5)[source]¶ Tukey tapering window (or cosine-tapered window)
Parameters: - N – window length
- r – defines the ratio between the constant section and the cosine section. It has to be between 0 and 1.
The function returns a Hanning window for r=0 and a full box for r=1.

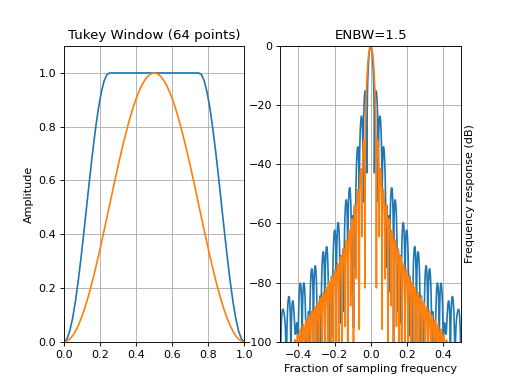

from spectrum import window_visu window_visu(64, 'tukey') window_visu(64, 'tukey', r=1)
(Source code, png, hires.png, pdf)
See also
-
window_visu
(N=51, name='hamming', **kargs)[source]¶ A Window visualisation tool
Parameters: - N – length of the window
- name – name of the window
- NFFT – padding used by the FFT
- mindB – the minimum frequency power in dB
- maxdB – the maximum frequency power in dB
- kargs – optional arguments passed to
create_window()
This function plot the window shape and its equivalent in the Fourier domain.
from spectrum import window_visu window_visu(64, 'kaiser', beta=8.)
(Source code, png, hires.png, pdf)
